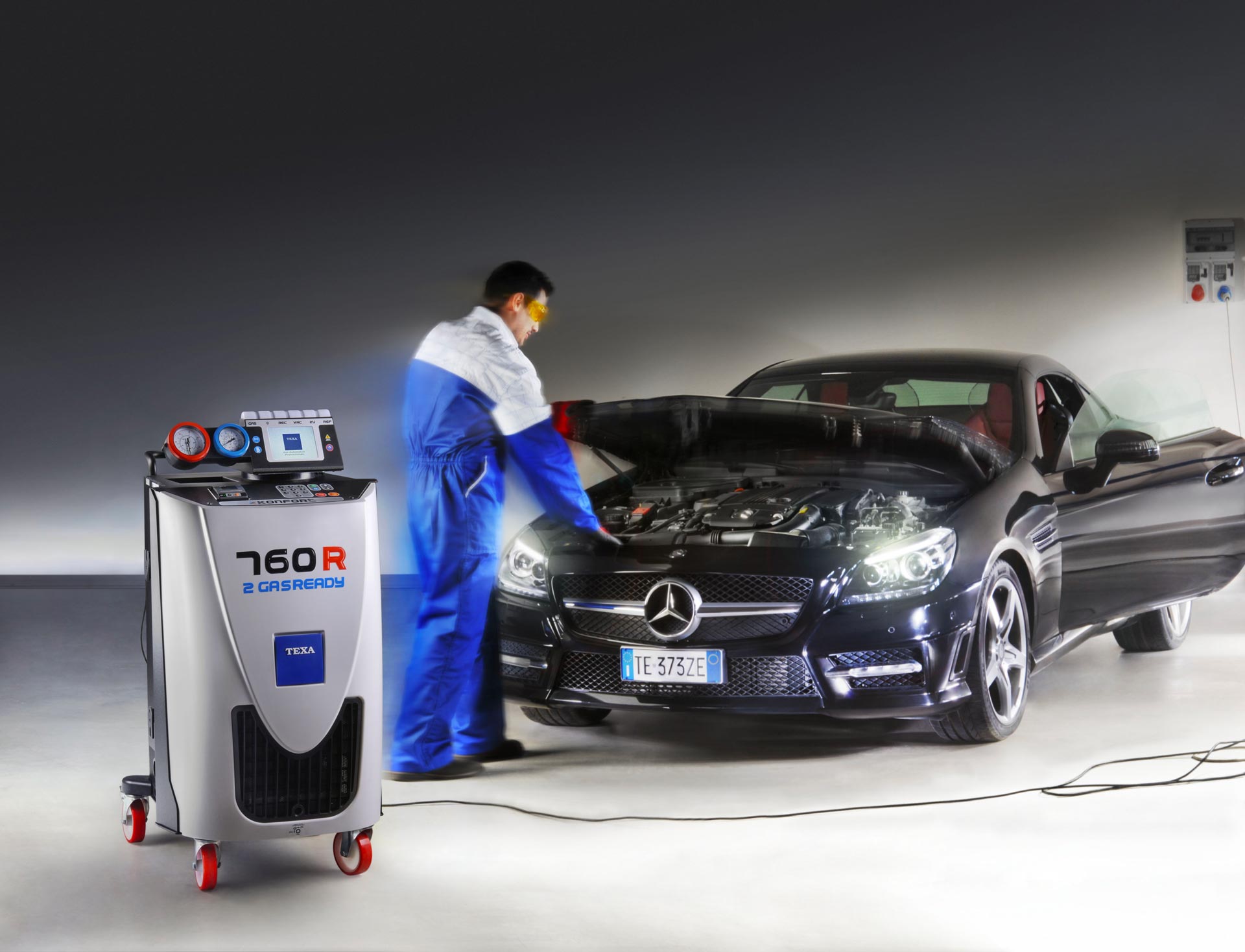

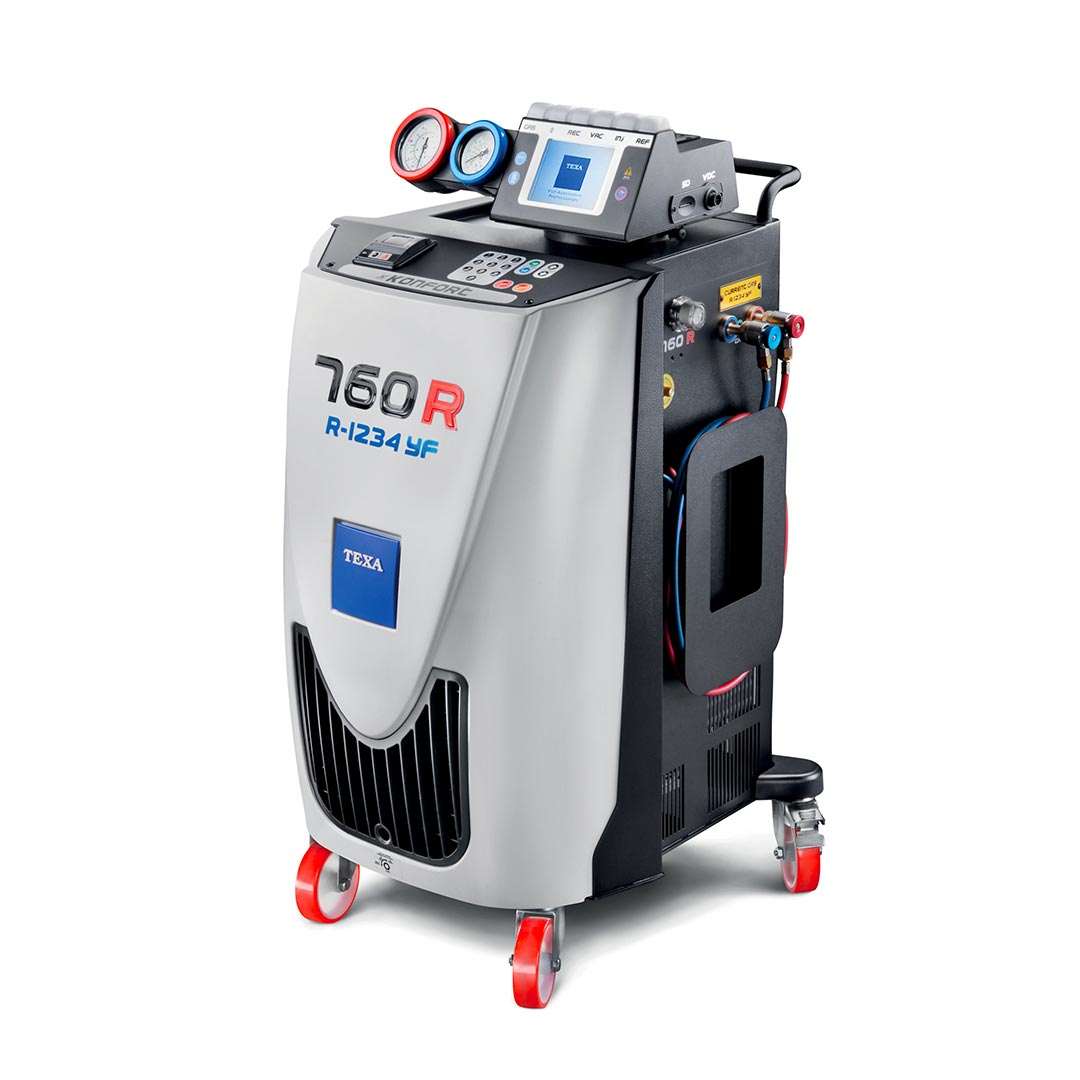

KONFORT 760R
760R BUS

760R BUS and 2 GAS READY

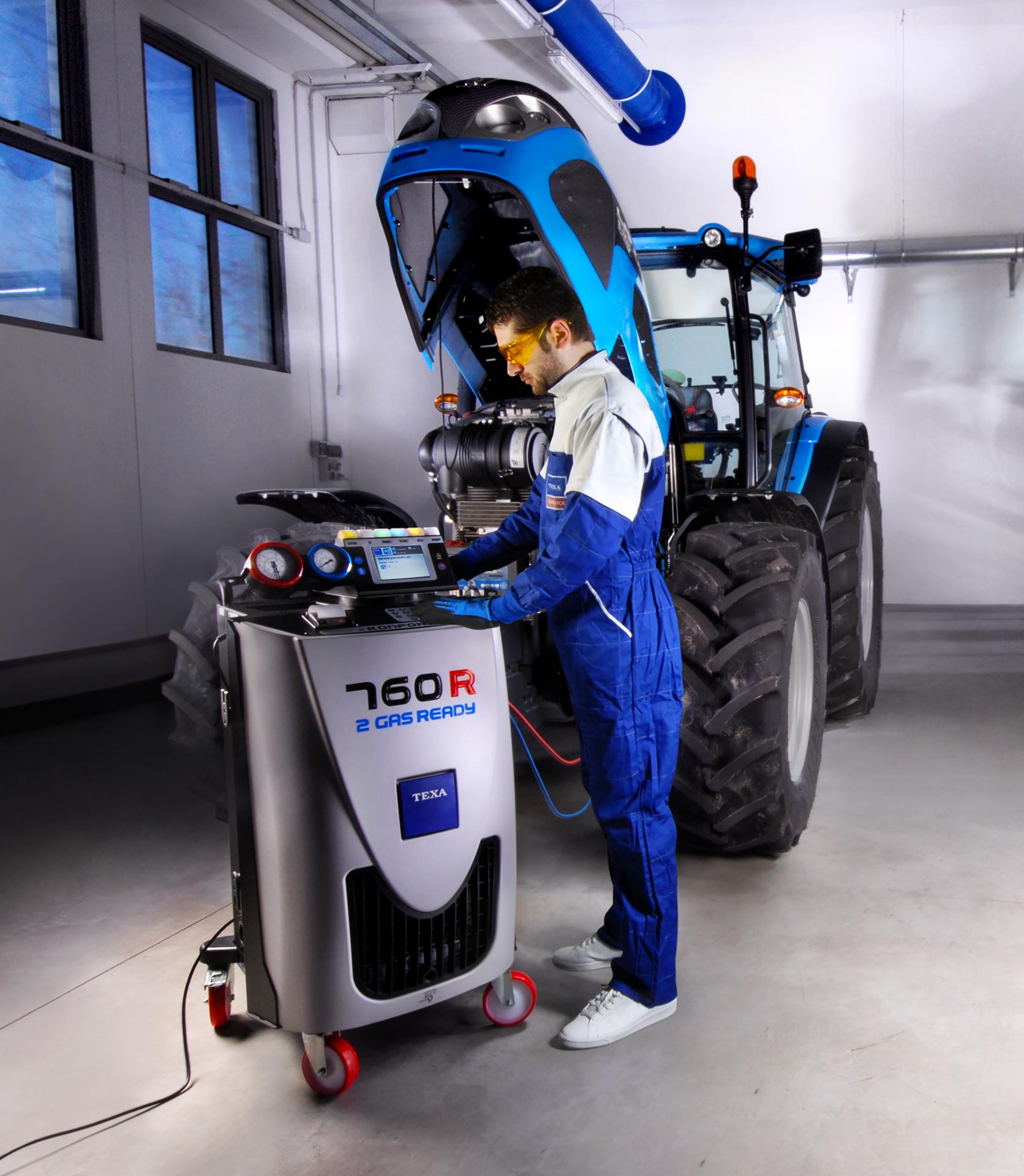

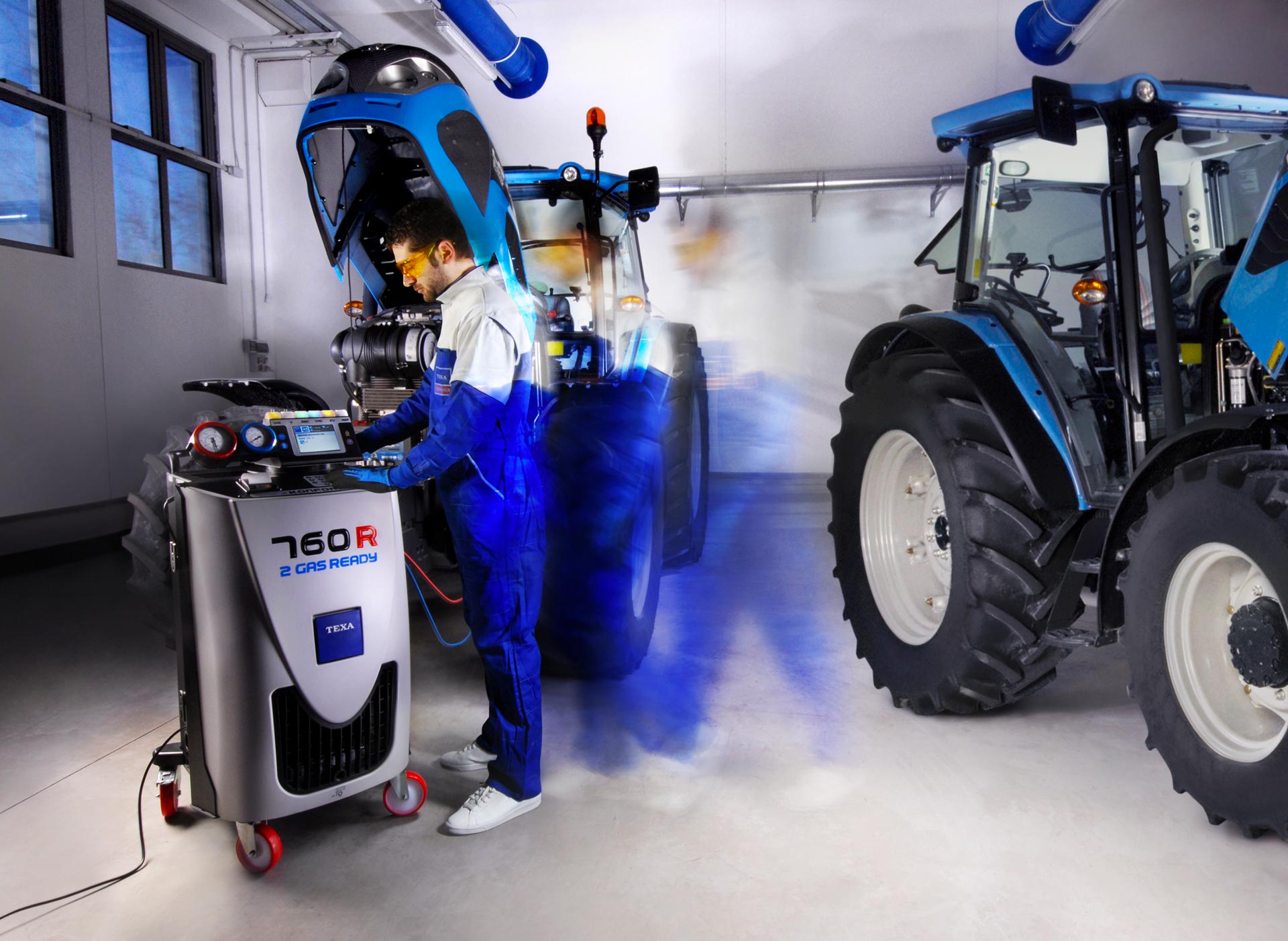

KONFORT 760R 2 GAS READY

This model is equipped with a high visibility colour TFT display with a graphic interface for ease of use.

The service management procedure is fully automatic, so there is no requirement for manual taps.

The distinctive features are the hermetically sealed bottle system, automatic service management system, refrigerant measurement and scale locking system.

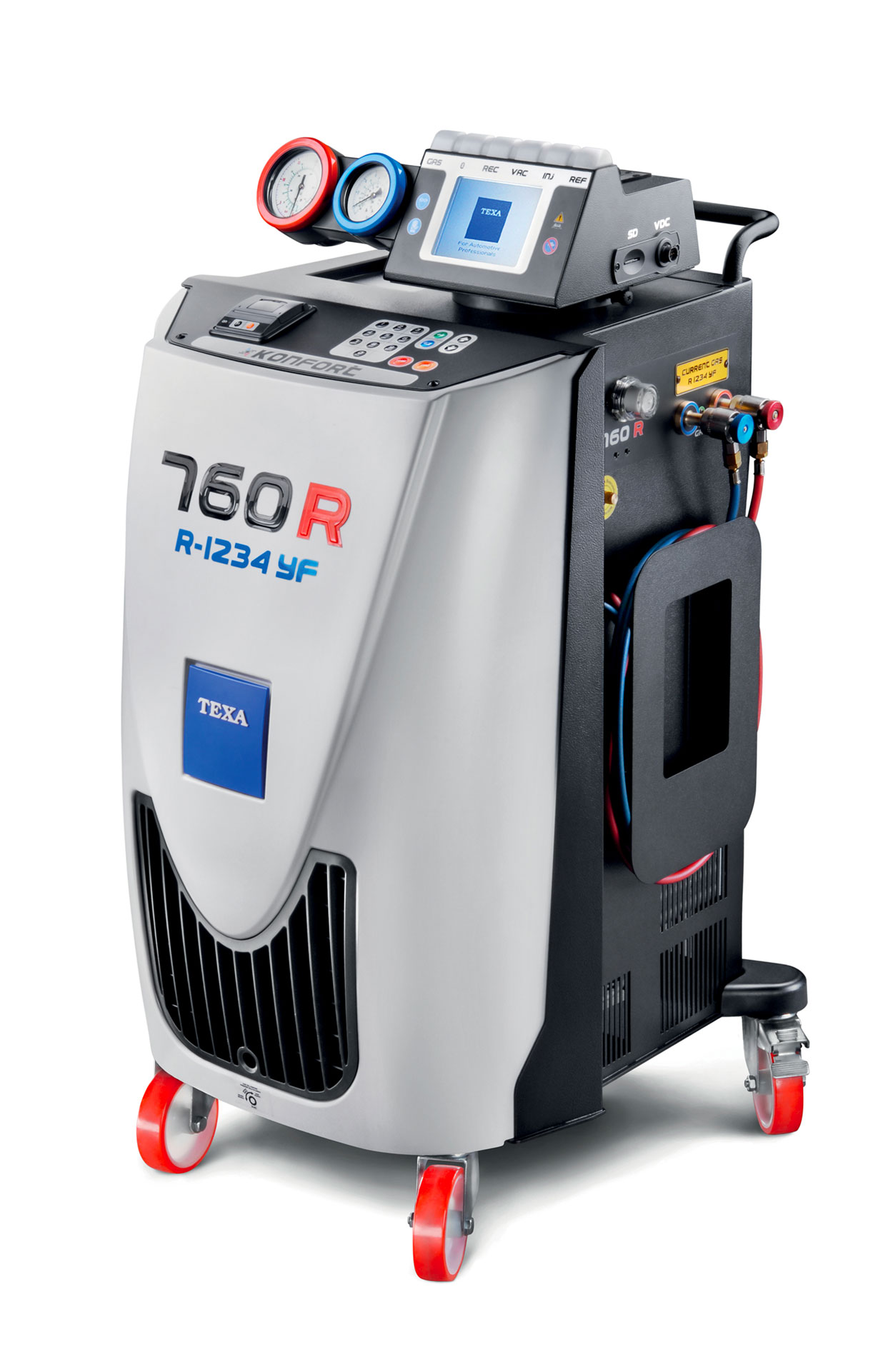

The 760R can be purchased configured either for the old R134a refrigerant or the new R1234yf refrigerant. A retrofit kit is also available to change refrigerant type.

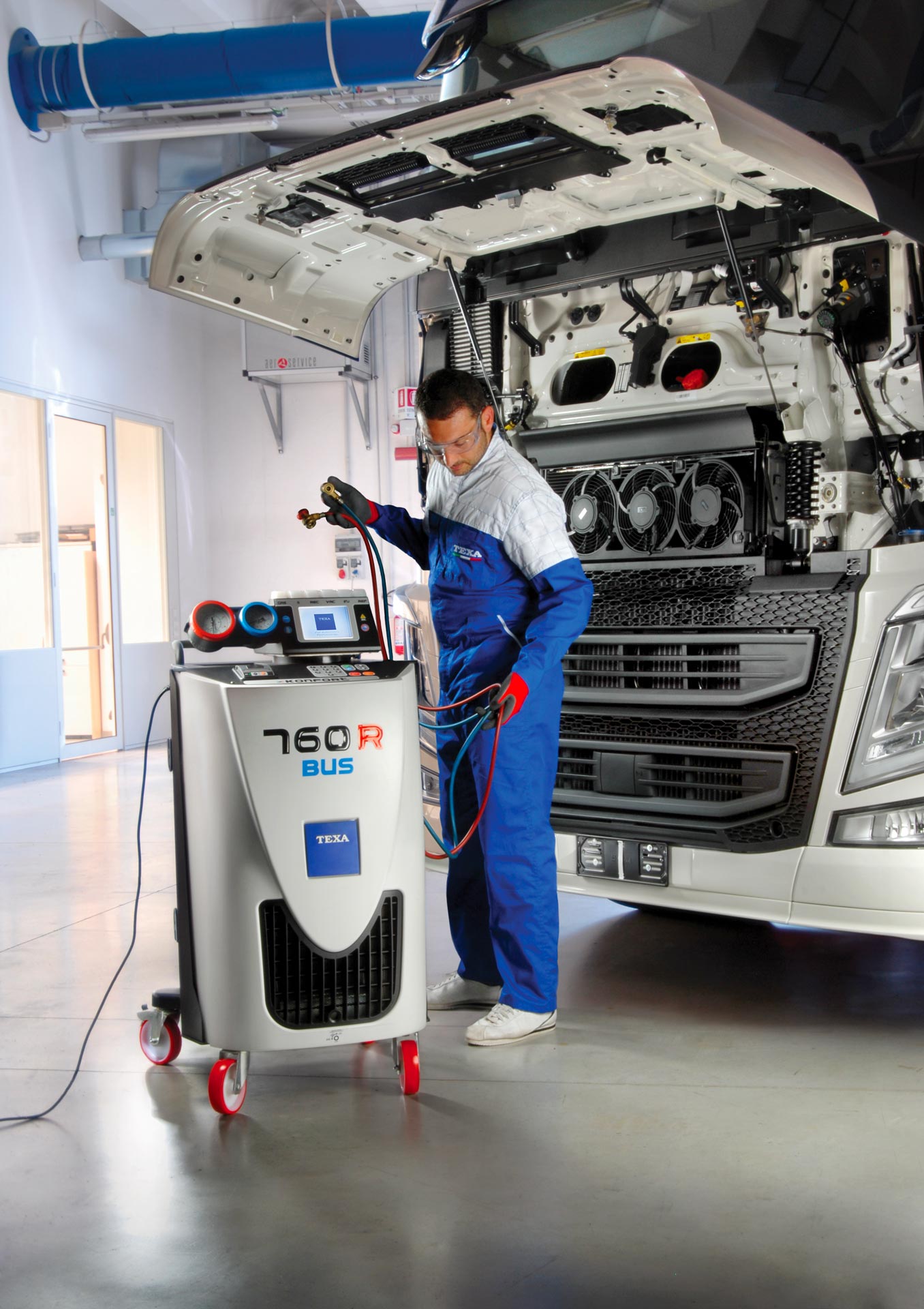

KONFORT 760R BUS

Ideal for large A/C systems

The 760R BUS specifically developed for larger systems. Is equipped with a 30 Kg internal storage tank, a larger 21cc compressor for refrigerant and a 146l/min dual stage vacuum pump, able to generate depression of 0.030 mbar.

Like the standard 760R, the Bus version too can work either with the older R134a refrigerant or with the new R1234yf, and can switch from one to the other with the installation of a retrofit kit.*

*Optional

SPECIFIC SERIES SOLUTIONS

REFILLABLE HERMETICALLY SEALED OIL BOTTLES

Standard oil bottles are not hermetically sealed, they always contain a percentage of air. The water molecules in the air bind with the oil and contaminate it. TEXA’s solution was
to create special containers which prevent the oil from becoming contaminated by air and humidity, which have been patented. These special bottles can be re-used thanks to a special system which removes the air from the bottle.

HYDRAULIC SYSTEM FLUSHING

In order to guarantee safety and efficiency, it is important that each type of oil and refrigerant are not cross contaminated. TEXA have therefore developed a special automatic flushing function to clean the internal circuits of the service station.

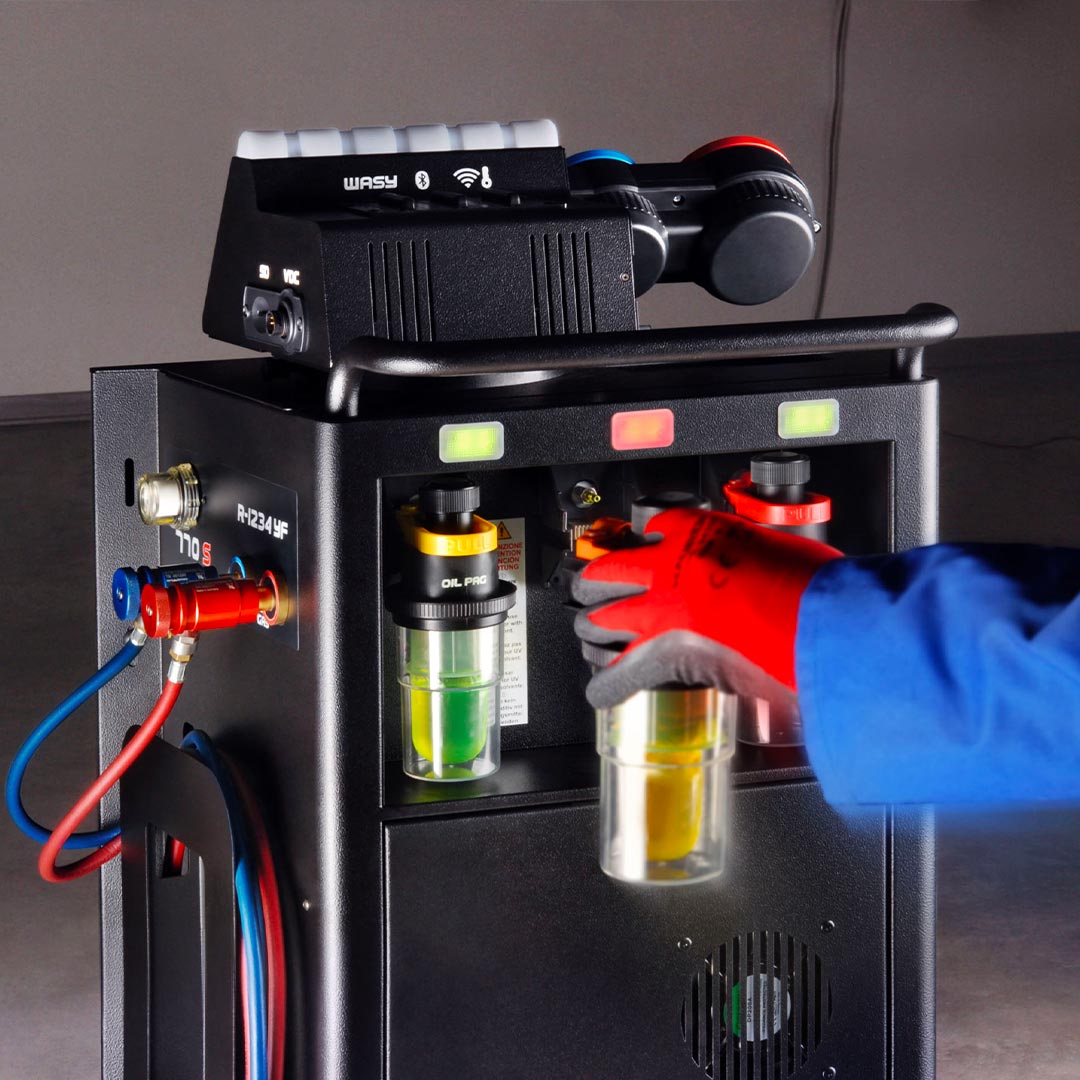

AUTOMATIC BOTTLE IDENTIFICATION

With the introduction of new vehicles, particularly electric and hybrid vehicles, new oils have been introduced for these applications. The correct oil type must be used relating to the air conditioning system to be serviced (eg PAG or POE). It is potentially damaging and dangerous to inject non-compatible oils into the system, so the operator must take care to avoid mistakes. TEXA has developed an automatic oil bottle recognition system which, by comparing the data contained in the vehicles database, signals if the incorrect bottle is in use.

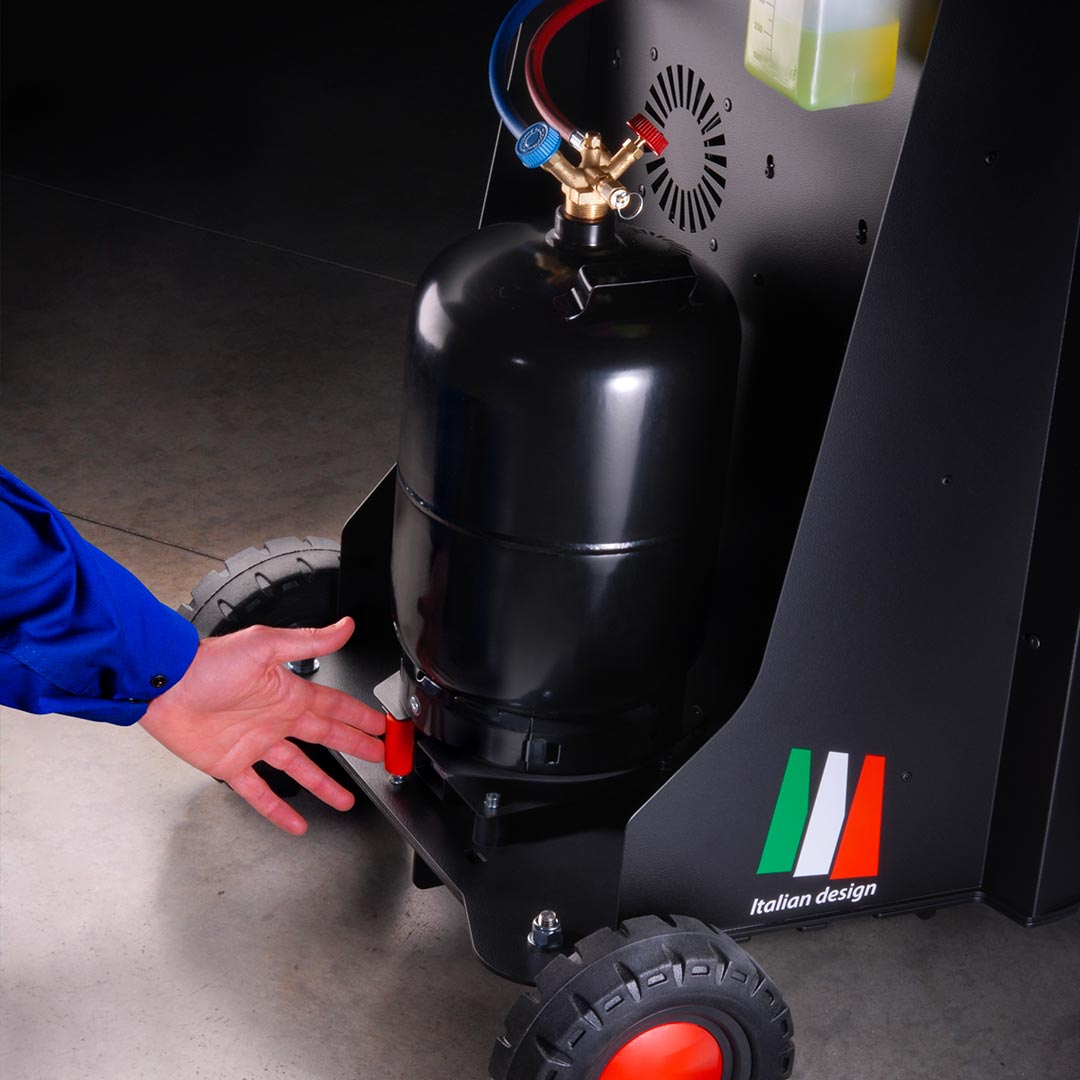

TILT SENSOR SYSTEM FOR ACCURATE READINGS

The scales used for refrigerant measurement can be inaccurate when used on uneven surfaces. TEXA’s patented TILT SENSOR SYSTEM analyses the scales horizontal positioning and alerts the operator to the fact that the readings may be inaccurate.

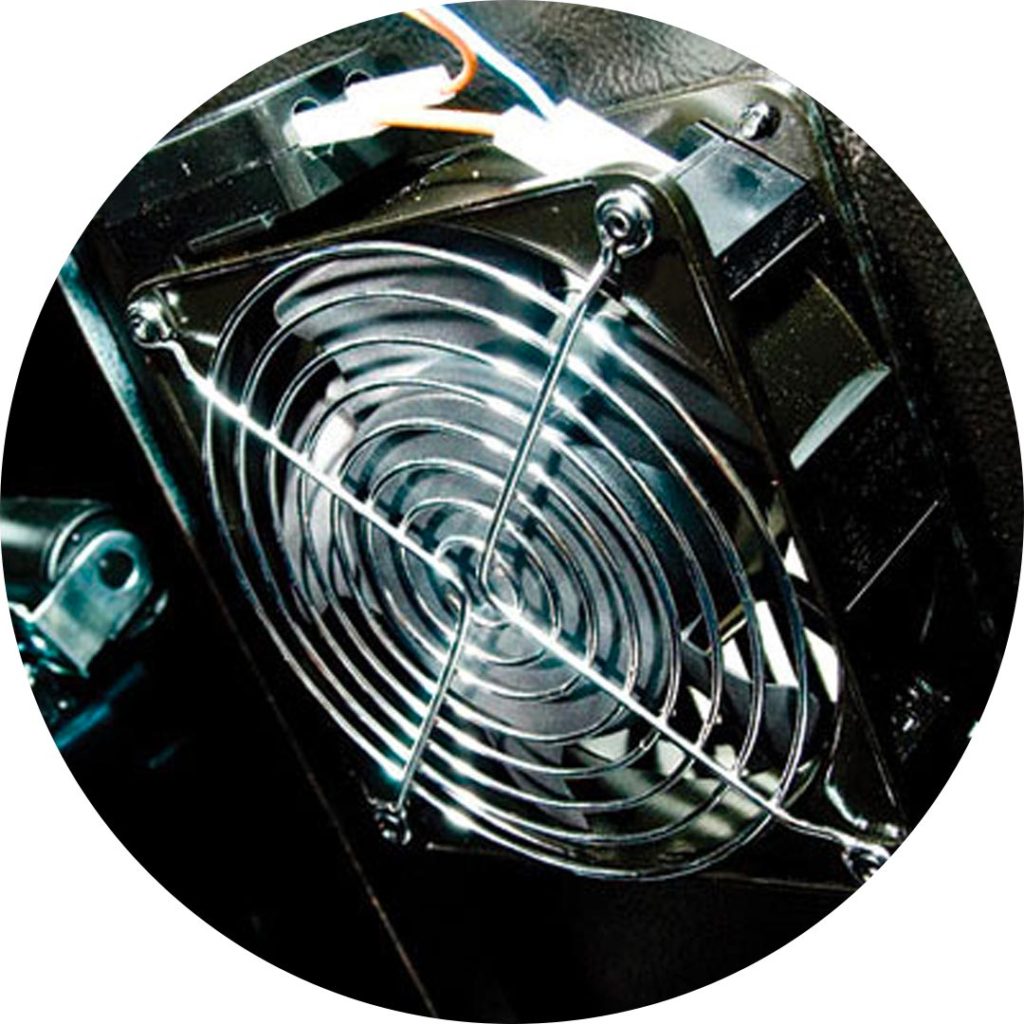

FAN PROTECTION SYSTEM

The new R1234yf refrigerant has been classified as being ‘highly flammable’ and this must be acknowledged by the operator. The KONFORT 700 series adopts a high efficiency redundant fan system to eliminate any possible refrigerant build up within the unit.

AUTOMATIC LEAK DETECTION MANAGEMENT

The KONFORT 700 range charging stations automatically carry out a double check for possible gas leaks from the tanks. All safety related operations take place automatically in order to eliminate errors.

OPERATING SOFTWARE

TEXA operating software conforms to the strictest requirements of accuracy and precision.

Any possible faults or messages are displayed via detailed error messages. TEXA software manages the recovery and recharge processes, in order to guarantee precession that was previously unknown.

In particular, the automatic procedures assist the operator with repairs on highly sophisticated systems, such as those fitted on the new hybrid vehicles. All models have a removable SD card which allows communication with a Windows PC to update vehicle make and model database, check and certify all services and potential software updates.

OPTIONAL

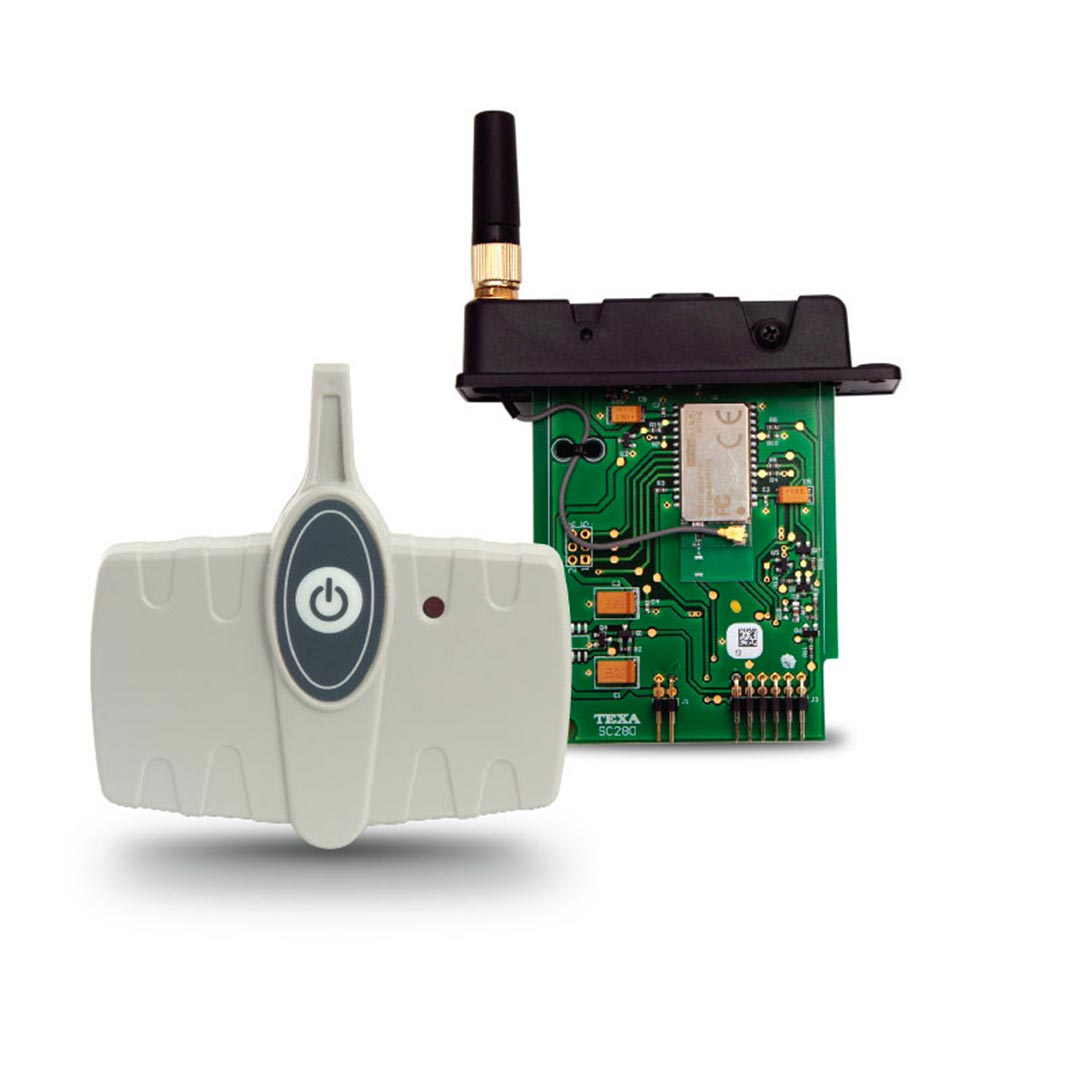

A/C SYSTEM EFFICIENCY KIT

It performs a dynamic check on the output temperature of the A/C system vents.
At the end of the test, the KONFORT TOUCH charging station produces a detailed report certifying the actual performance of the vehicle’s A/C system.

Forming Gas case

The Forming Gas case, included in the purchase of the Forming Gas cart TTF 700 as part of its instrumentation, it can also be purchased separately to support the KONFORT A/C recharge stations (760R, 760R BUS, 770S, 780R and 744) in the leak detection.

– Dimensions: 470x350x190 mm; Weight: 7 kg
– Set of adapters for the coupling of the Forming Gas tank
– Forming Gas tank pressure reducer: input operating pressure 300 bar max, output 100 bar max
– Connection kit for KONFORT 744 including: Forming Gas quick coupler, 2500-mm flexible hose for high pressure connection
– Connection kit for KONFORT 760R, 760R BUS, 770S and 780R including: 150 mm hose, evacuation valve, safety valve
– Teflon seals

REC+

REC+ is TEXA’s new, patented solution for recovering contaminated refrigerants from vehicle air conditioning systems.

The device works with the fully automatic recharge stations in the KONFORT range (780 TOUCH, 760 TOUCH, 760 BUS TOUCH, 720 TOUCH, 707R, 760R, 760R BUS and 780R BI-GAS) and guarantees the completely safe recovery of all kinds of refrigerant. REC+ can easily be moved around the workshop, satisfies the technical, performance and safety requirements of leading car makersand permits the recovery of up to 95% of the refrigerant contained in the system. An automatic procedure integrated in the software of KONFORT recharge stations lets you complete all necessary operations easily. At the end of the recovery procedure, you can discharge contaminated refrigerant into a tank for subsequent disposal.

REFRIGERANT IDENTIFIER KIT

A solution which automatically identifies the refrigerant on behalf of the operator when using R134a and R1234yf refrigerants.

This kit ensures that incorrect or contaminated refrigerant is not recovered into the KONFORT service station.

THERMAL PRINTER

It is possible to install a very useful thermal printer, to generate at any time an accurate report of all the operations performed.

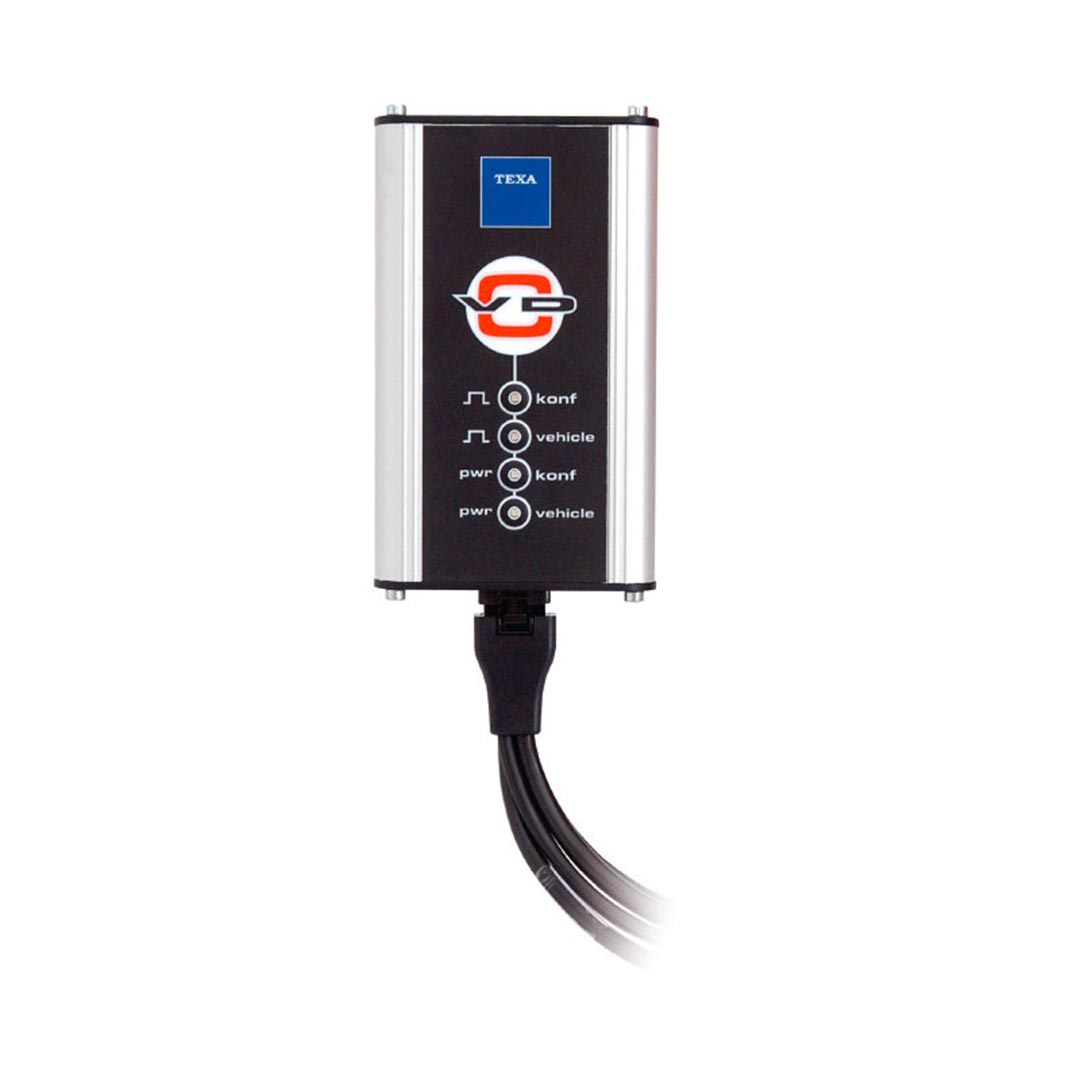

VDC KIT

TEXA has developed a VDC interface (Variable Displacement Compressor) which allows air conditioning system with variable cylinder compressor to be tested.
The VDC allows the technician to intervene and modify the compressor control signal through the Konfort service station, to test the functionality of the system.

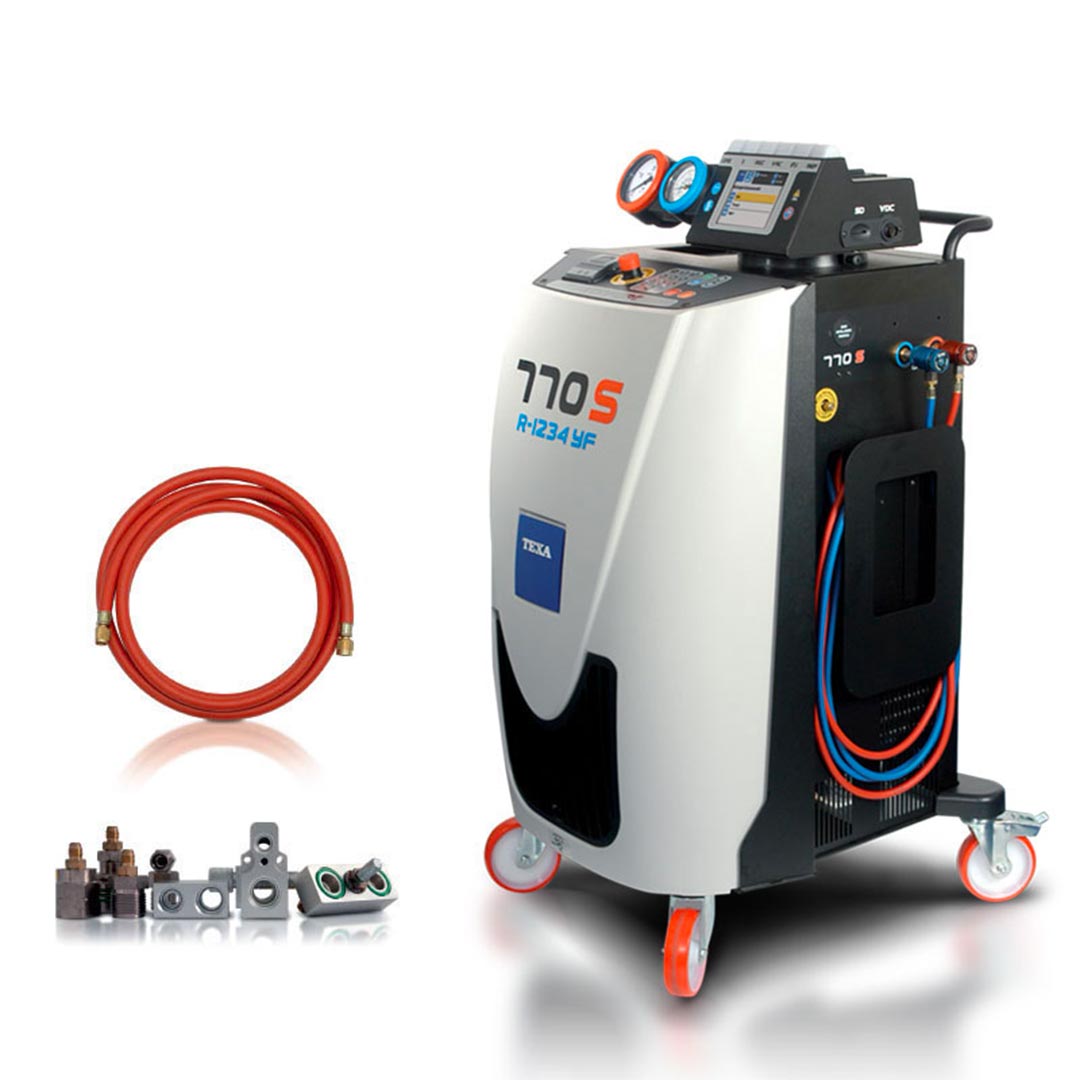

VEHICLE FLUSHING KIT

Flushing is the mechanical operation carried out to clean the air conditioning system components of a vehicle.

This includes:
• A supplementary 6lt capacity tank with a contamination indicator
• A stainless steel filter which is easily removable for cleaning
• 5mm diameter hoses flushing hose
• Universal adapter case

Prodotto da inserire all’interno del sistema per il trattamento dei gas di climatizzazione di autoveicoli KONFORT.
Verificare con il proprio rivenditore TEXA di fiducia le modalità di accesso al Nuovo Piano Industria 4.0.

Technical Specifications

MAIN FEATURES

• R134a or R1234yf compatible
• High visibility colour TFT display with interface Graphics
• DATABASE/SERVICE management via SD card
• Rotating gauge display (excluding Germany)
• 20 Kg internal tank for 760R
• 30 Kg internal tank for 760R BUS
• Charging accuracy +/- 15gr
• High efficiency refrigerant recovery (above 95%)
• Dual stage vacuum pump
• Hermetically sealed bottles
• Automatic high precision oil injection
• Automatic oil bottle recognition
• Automatic precise refrigerant measurement check (patented)
• Scale lock system
• Automatic service procedure management
• Multilingual software coverage
• Service hose length compensation
• Automatic maintenance alarm
• Simplified service
• Automatic non condensable management

FUNCTIONALITY
Database
Customized service
My database

OPTIONAL
Vehicle flushing kit
VDC kit
Climate efficiency kit
Refrigerant identifier
Thermal printer
