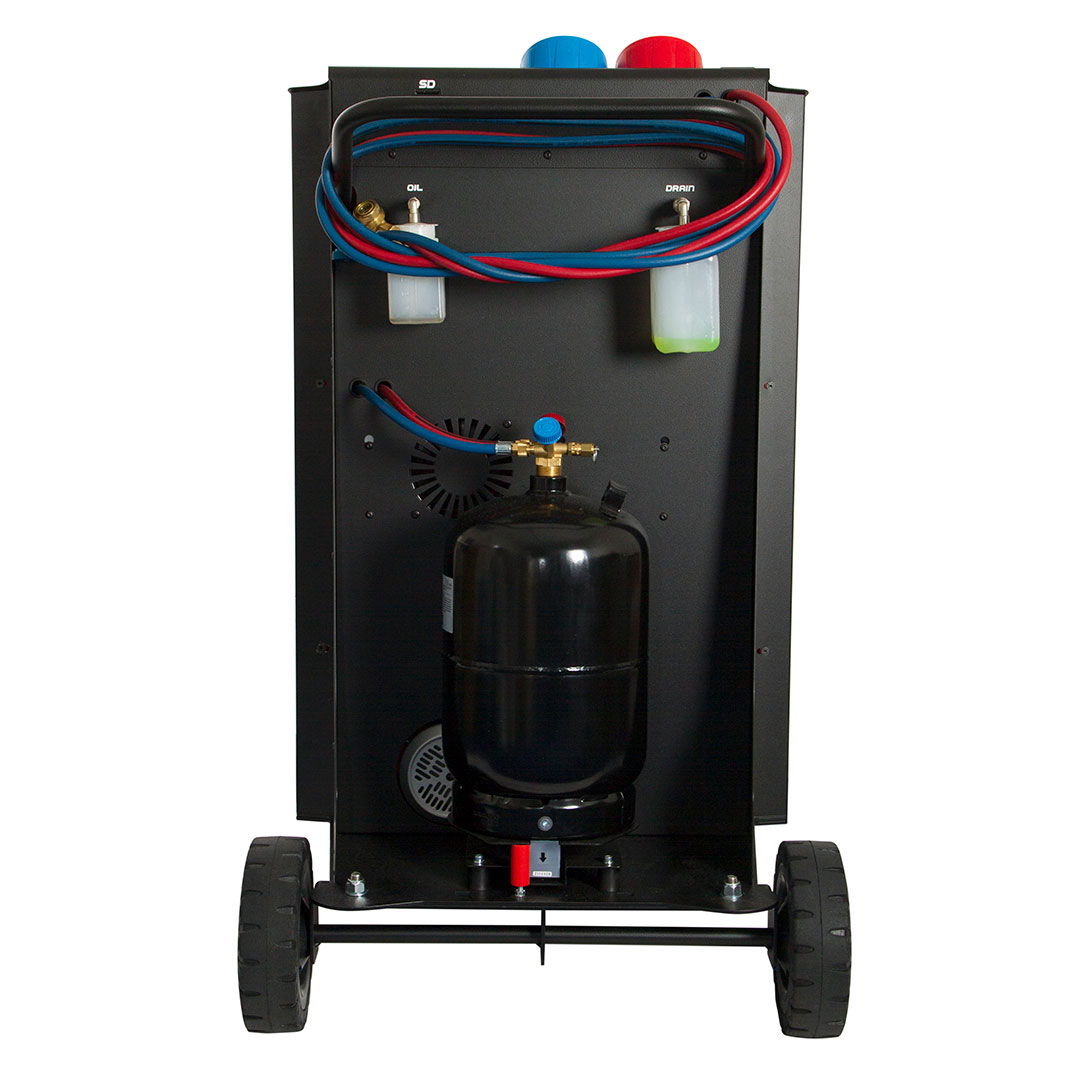

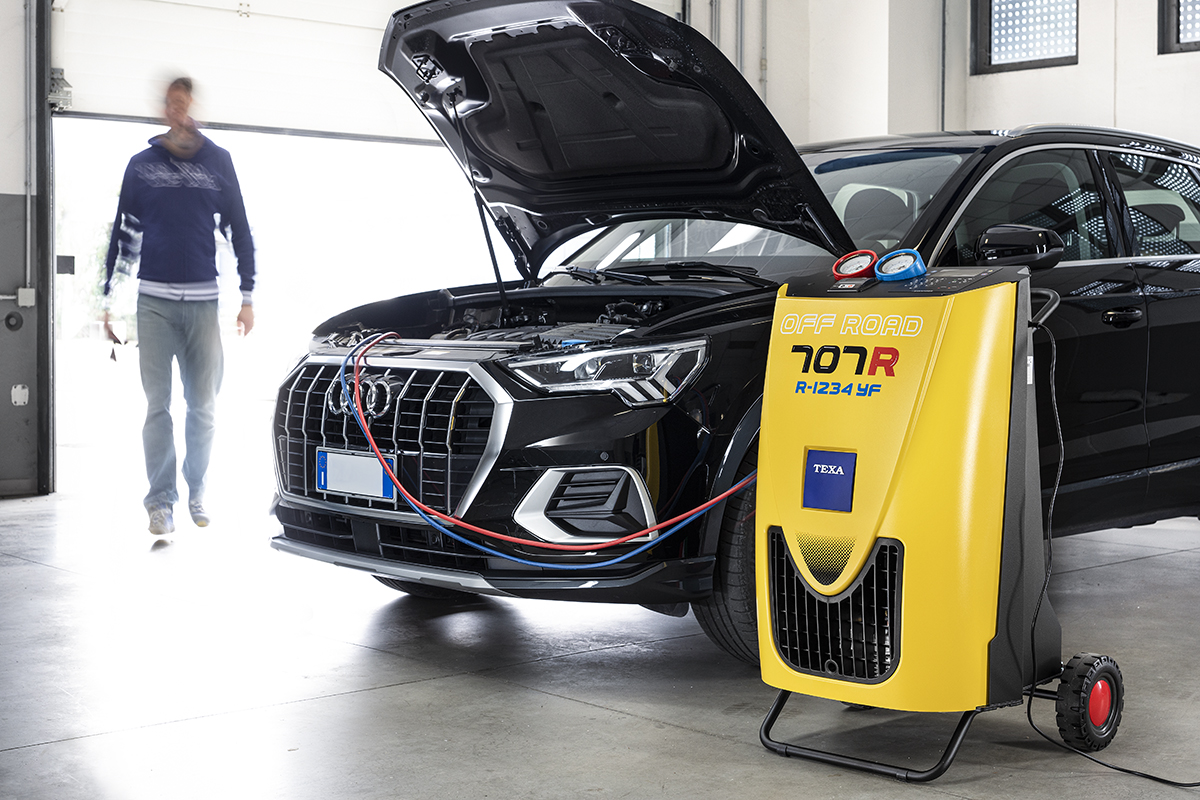

KONFORT 707R
OFF ROAD

The perfect charge with R1234yf, in any situation.

IMPECCABLE ACCURACY

It is an essential station, evolved from a constructive and functional point of view, which allows simple and efficient operations on vehicles equipped with the R1234yf gas refrigerant and gives its best on uneven floors, but also in outdoor use.
It is, in fact, equipped with two oversized rear wheels, filled with a special anti-puncture foam, and a front metal bar that increases its stability during use considerably. Another expedient added is the scale locking system that prevents the loss of calibration due to sudden bounces.

KONFORT 707R OFF ROAD carries out the maintenance in a completely automatic way and is equipped with a special dryer filter that allows performing up to 300 consecutive services.

The station records all the services carried out so that the data on the operations completed is always available. It is fitted for the installation of the Refrigerant Identifier Kit.

SPECIFIC SERIES SOLUTIONS

REFILLABLE HERMETICALLY SEALED OIL BOTTLES

Standard oil bottles are not hermetically sealed, they always contain a percentage of air. The water molecules in the air bind with the oil and contaminate it. TEXA’s solution was
to create special containers which prevent the oil from becoming contaminated by air and humidity, which have been patented. These special bottles can be re-used thanks to a special system which removes the air from the bottle.

TILT SENSOR SYSTEM FOR ACCURATE READINGS

The scales used for refrigerant measurement can be inaccurate when used on uneven surfaces. TEXA’s patented TILT SENSOR SYSTEM analyses the scales horizontal positioning and alerts the operator to the fact that the readings may be inaccurate.

OPERATING SOFTWARE

TEXA operating software conforms to the strictest requirements of accuracy and precision.

Any possible faults or messages are displayed via detailed error messages. TEXA software manages the recovery and recharge processes, in order to guarantee precession that was previously unknown.

In particular, the automatic procedures assist the operator with repairs on highly sophisticated systems, such as those fitted on the new hybrid vehicles. All models have a removable SD card which allows communication with a Windows PC to update vehicle make and model database, check and certify all services and potential software updates.

OPTIONAL

REC+

REC+ is TEXA’s new, patented solution for recovering contaminated refrigerants from vehicle air conditioning systems.

The device works with the fully automatic recharge stations in the KONFORT range (780 TOUCH, 760 TOUCH, 760 BUS TOUCH, 720 TOUCH, 707R, 760R, 760R BUS and 780R BI-GAS) and guarantees the completely safe recovery of all kinds of refrigerant. REC+ can easily be moved around the workshop, satisfies the technical, performance and safety requirements of leading car makersand permits the recovery of up to 95% of the refrigerant contained in the system. An automatic procedure integrated in the software of KONFORT recharge stations lets you complete all necessary operations easily. At the end of the recovery procedure, you can discharge contaminated refrigerant into a tank for subsequent disposal.

REFRIGERANT IDENTIFIER KIT

A solution which automatically identifies the refrigerant on behalf of the operator when using R134a and R1234yf refrigerants.

This kit ensures that incorrect or contaminated refrigerant is not recovered into the KONFORT service station.

THERMAL PRINTER

It is possible to install a very useful thermal printer, to generate at any time an accurate report of all the operations performed.

Prodotto da inserire all’interno del sistema per il trattamento dei gas di climatizzazione di autoveicoli KONFORT.
Verificare con il proprio rivenditore TEXA di fiducia le modalità di accesso al Nuovo Piano Industria 4.0.

Technical Specifications

MAIN CHARACTERISTICS
• Compatible with R1234yf
• High visibility, 4×20 character, blue backlit LCD screen
• DATABASE and service management by SD card
• 10 kg tank
• Single stage vacuum pump
• Charging accuracy +/- 15gr
• High efficiency refrigerant recovery (over 95%)
• Scales locking system
• Automatic oil injection (timed function)
• Automatic maintenance service management
• Multi-language software
• Automatic compensation for length of recharging lines
• Automatic maintenance alarm

FUNCTIONING MODES
Database
Customized service
My Database

OPTIONAL
Refrigerant identifier kit
Thermal printer
