E-DIAG CHARGER
E-DIAG CHARGER

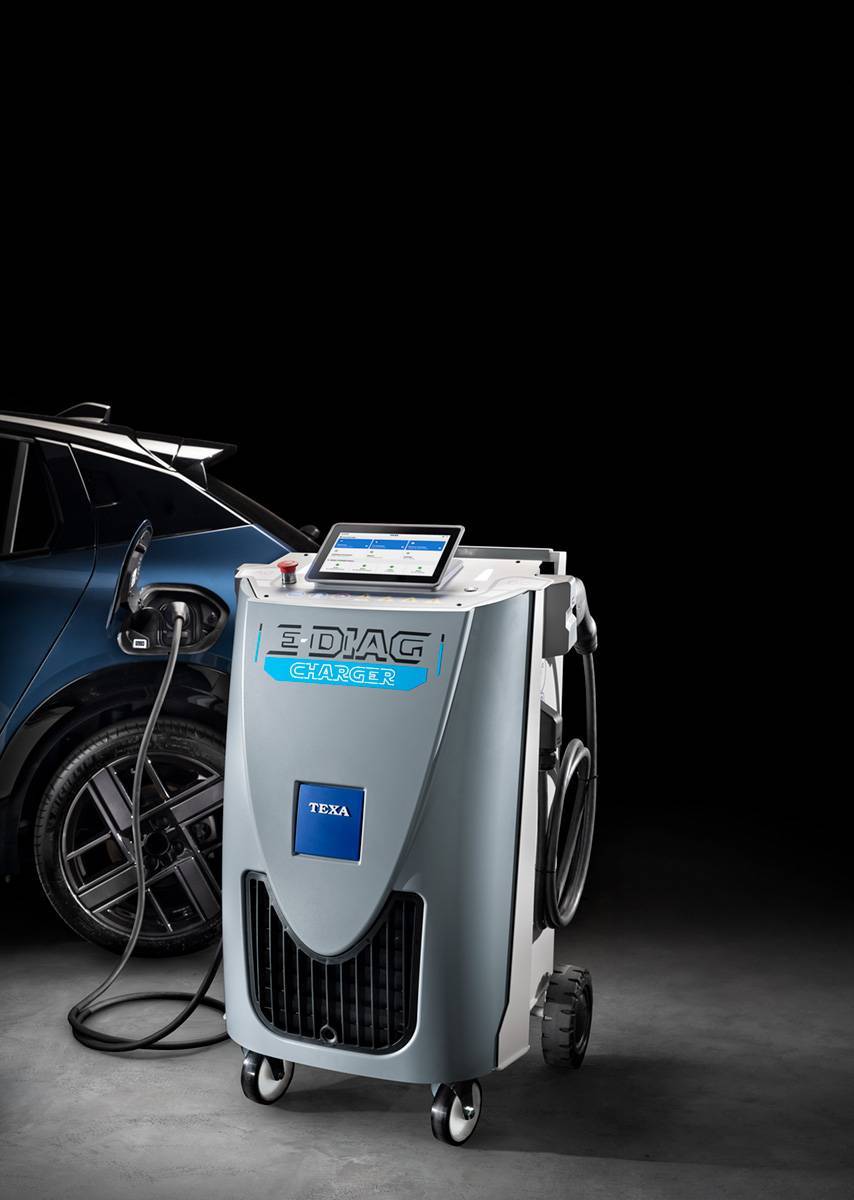

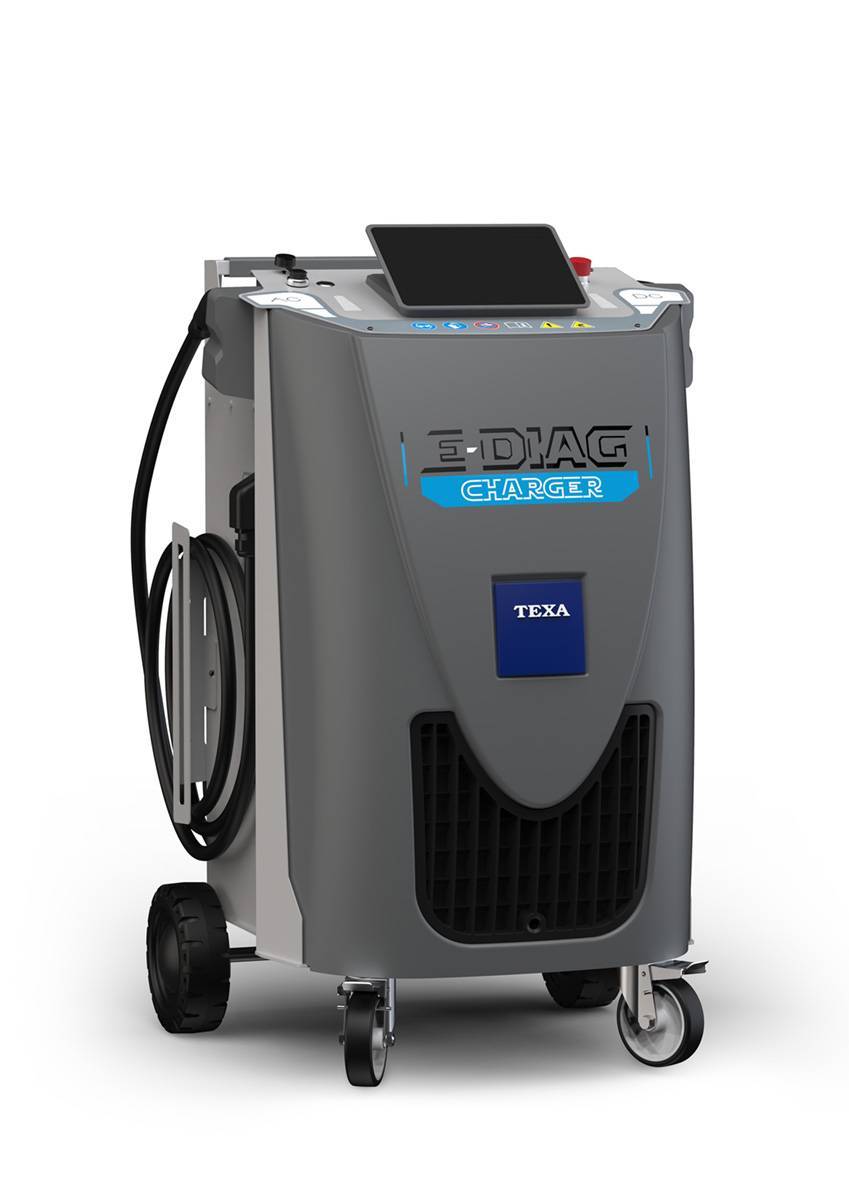

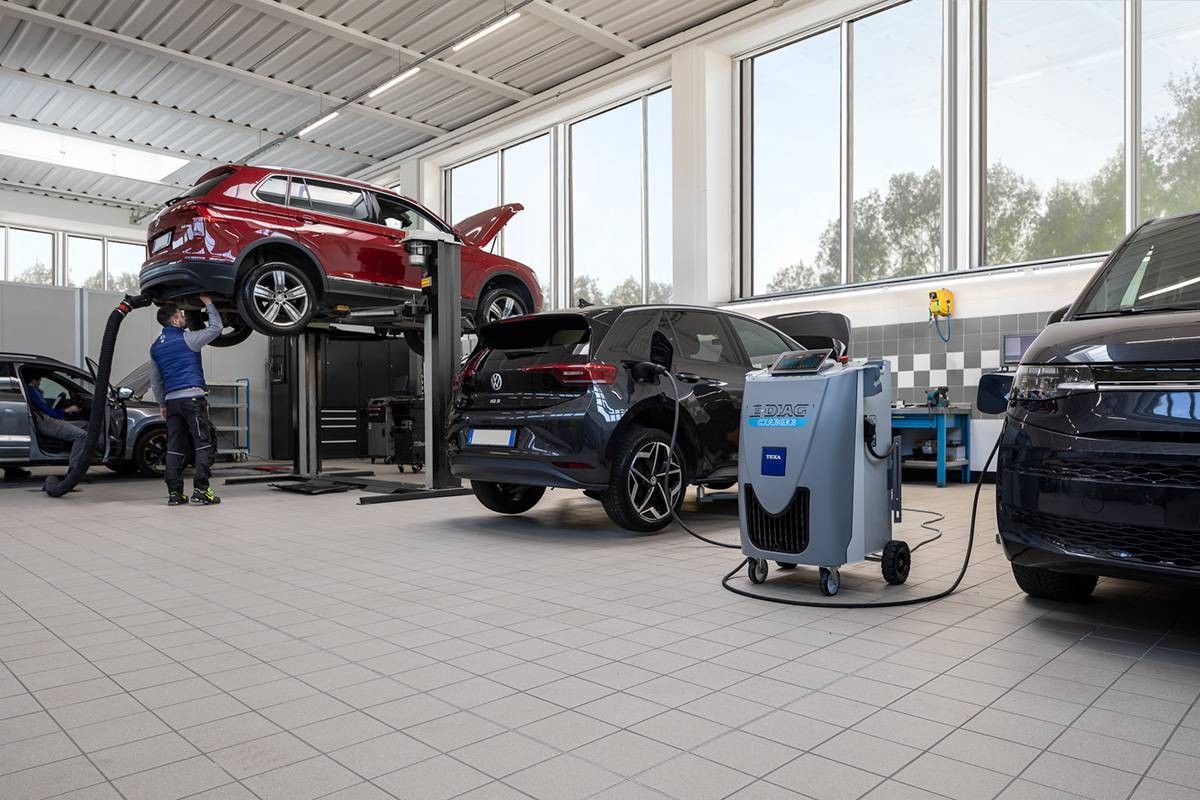

It is an advanced recharge and diagnosis mobile device, which meets the current needs of workshops and allows facing better any issue related to the maintenance and management of electric and hybrid vehicles, plug-ins included.
It allows recharging in both direct and alternating current (DC and AC up to 800 V), so vehicle repairers can try the two types of vehicle power supply effectively.
Its innovative diagnostic functionality is very important. It allows checking the state of health of the traction battery and of the systems involved in the charging process, thanks to the NAVIGATOR NANO SERVICE diagnostic module, provided as a standard. Moreover, workshops can obtain another document related to the battery state of health through a certificate that can be requested with a simple click directly on the tool. This service will be particularly useful for customers who require it.

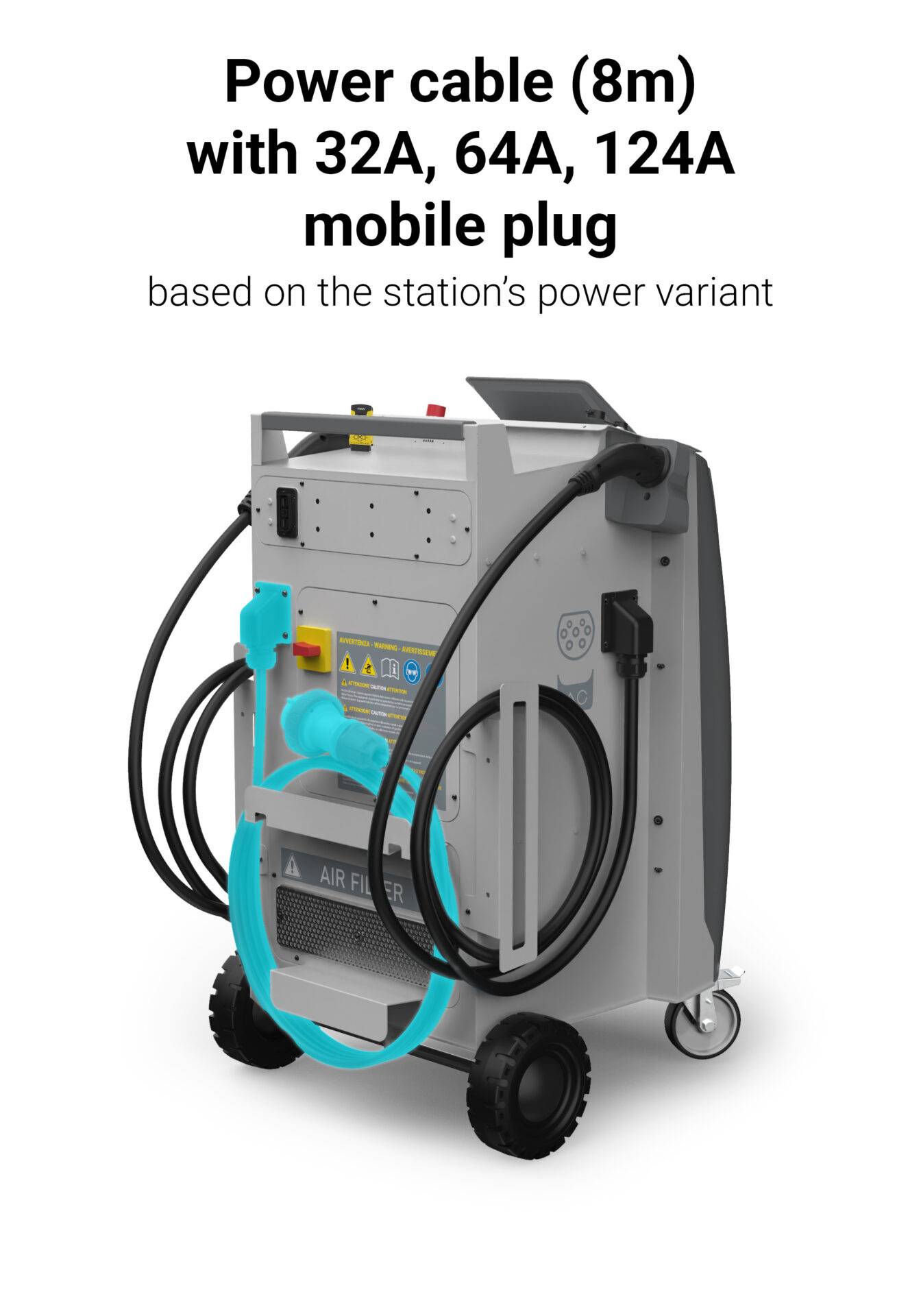

It is a reliable and versatile solution that easily adapts to different operating situations and is able to adjust the charging power automatically based on the capacity provided by the workshop’s electrical system.
E-DIAG CHARGER includes many functions:
- Recharge of the traction battery in BEVs, PHEVs up to 800 V
- Battery electronic system serial diagnosis
- Battery charging system serial diagnosis
- Recharge and diagnosis of 12 and 24 V service batteries
- Special Functions
- Traction battery state of health check and certification
Recharge

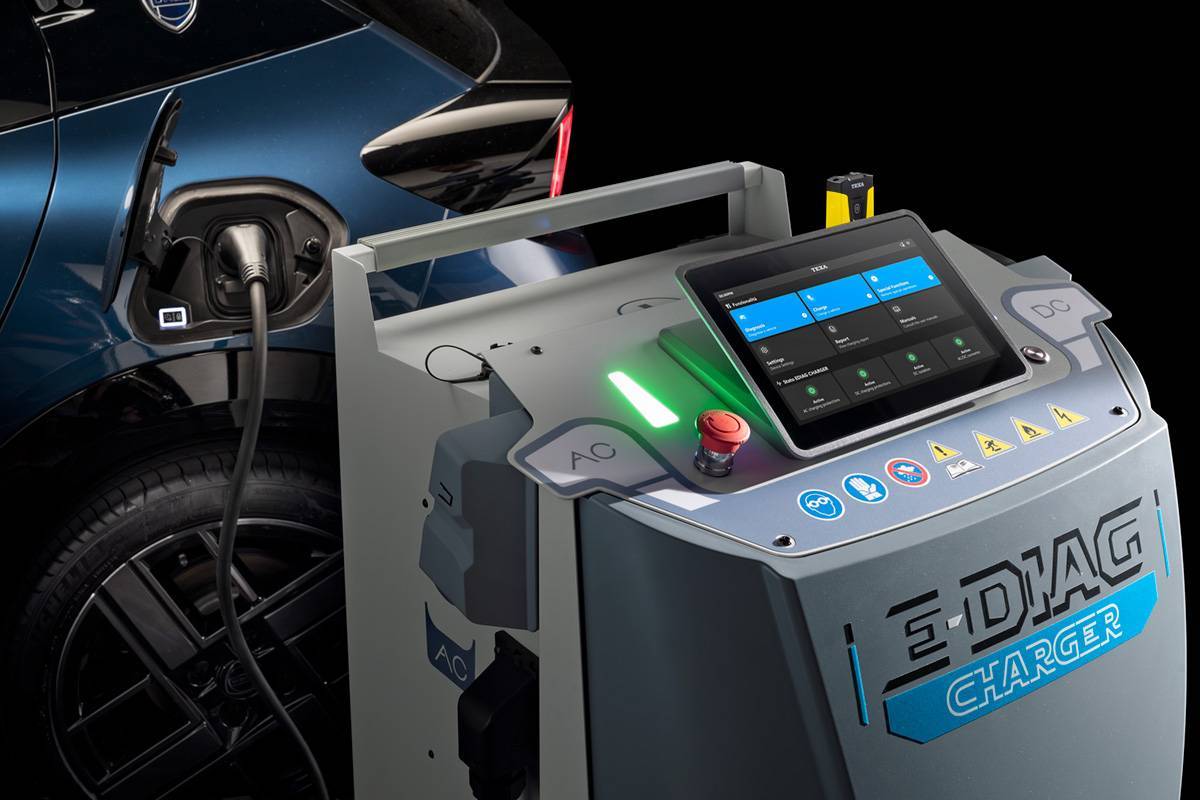

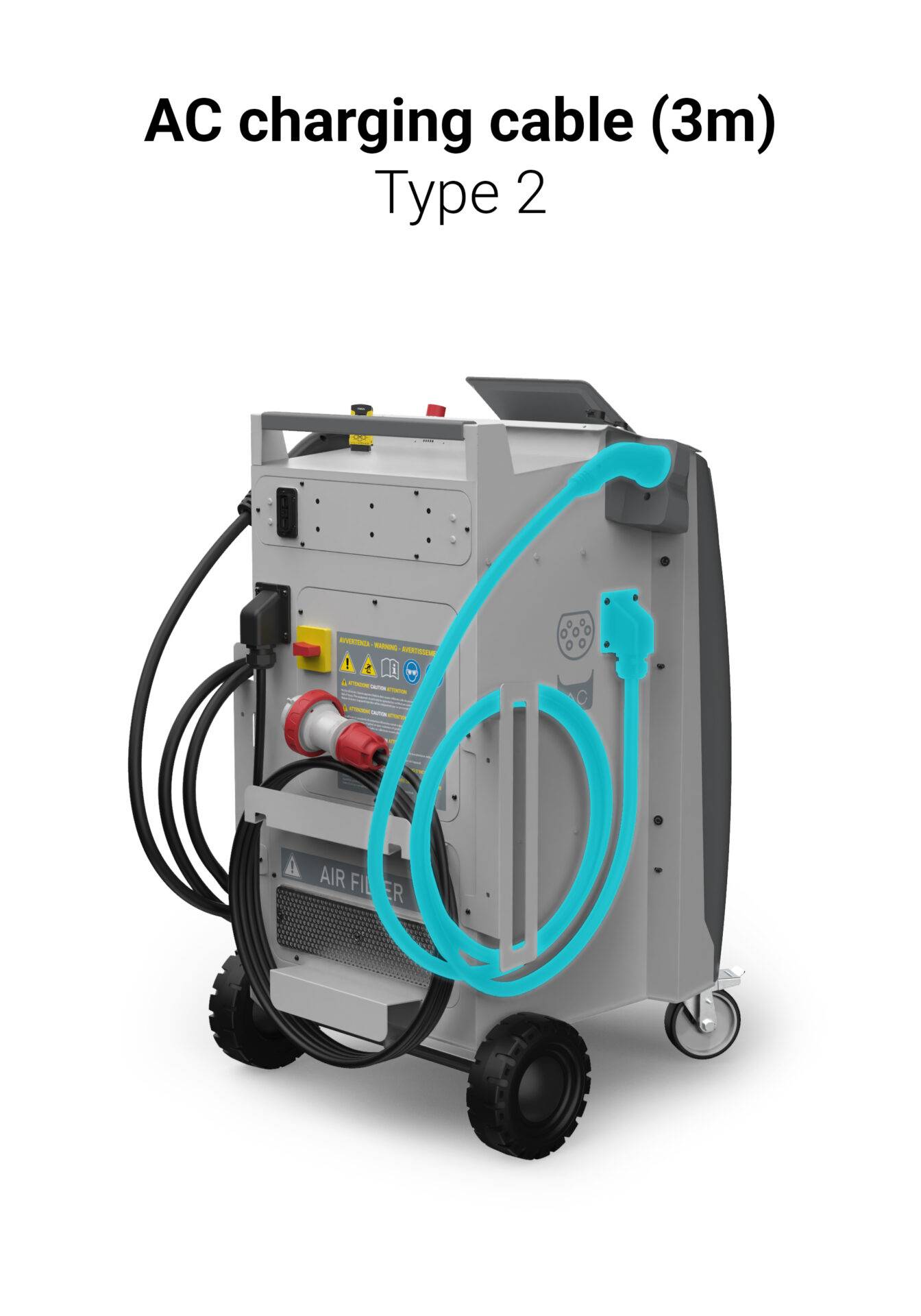

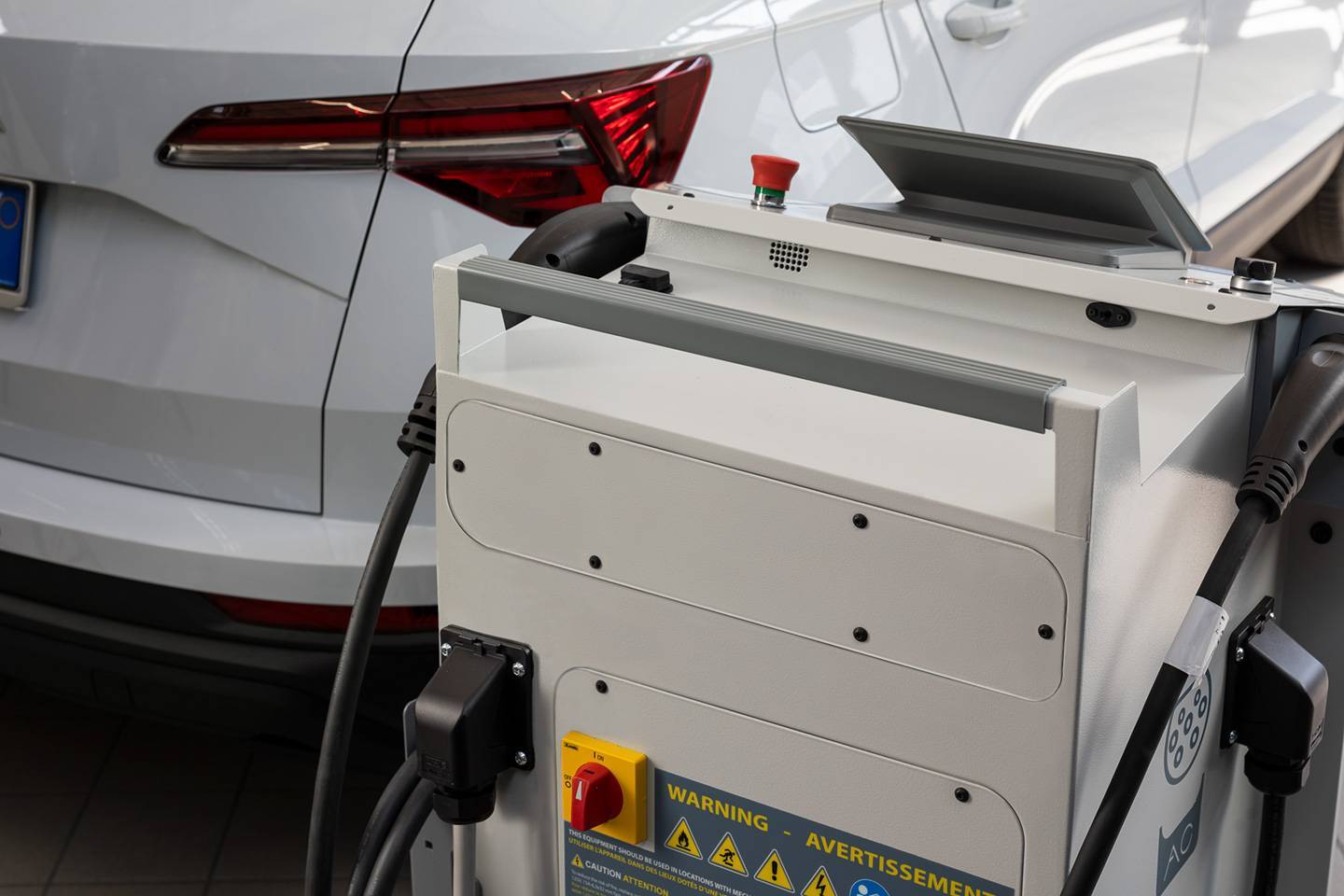

E-DIAG CHARGER allows recharging traction batteries in Vehicles (BEV) and Plug-in Hybrid Electric Vehicles (PHEV), with the possibility to recharge both in AC via Type 2 connector and in Direct Current (DC) via CCS2 Combo connector.
The available power allows managing the recharging process quickly, thus optimising action times in the workshop.

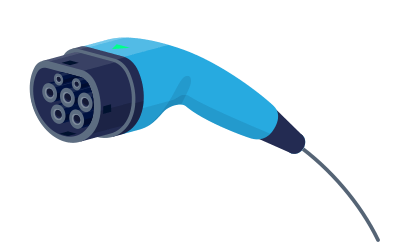

AC TYPE 2

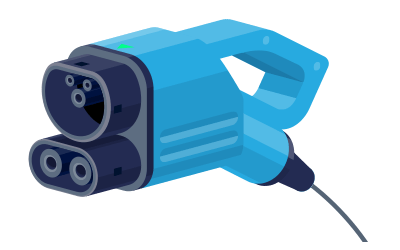

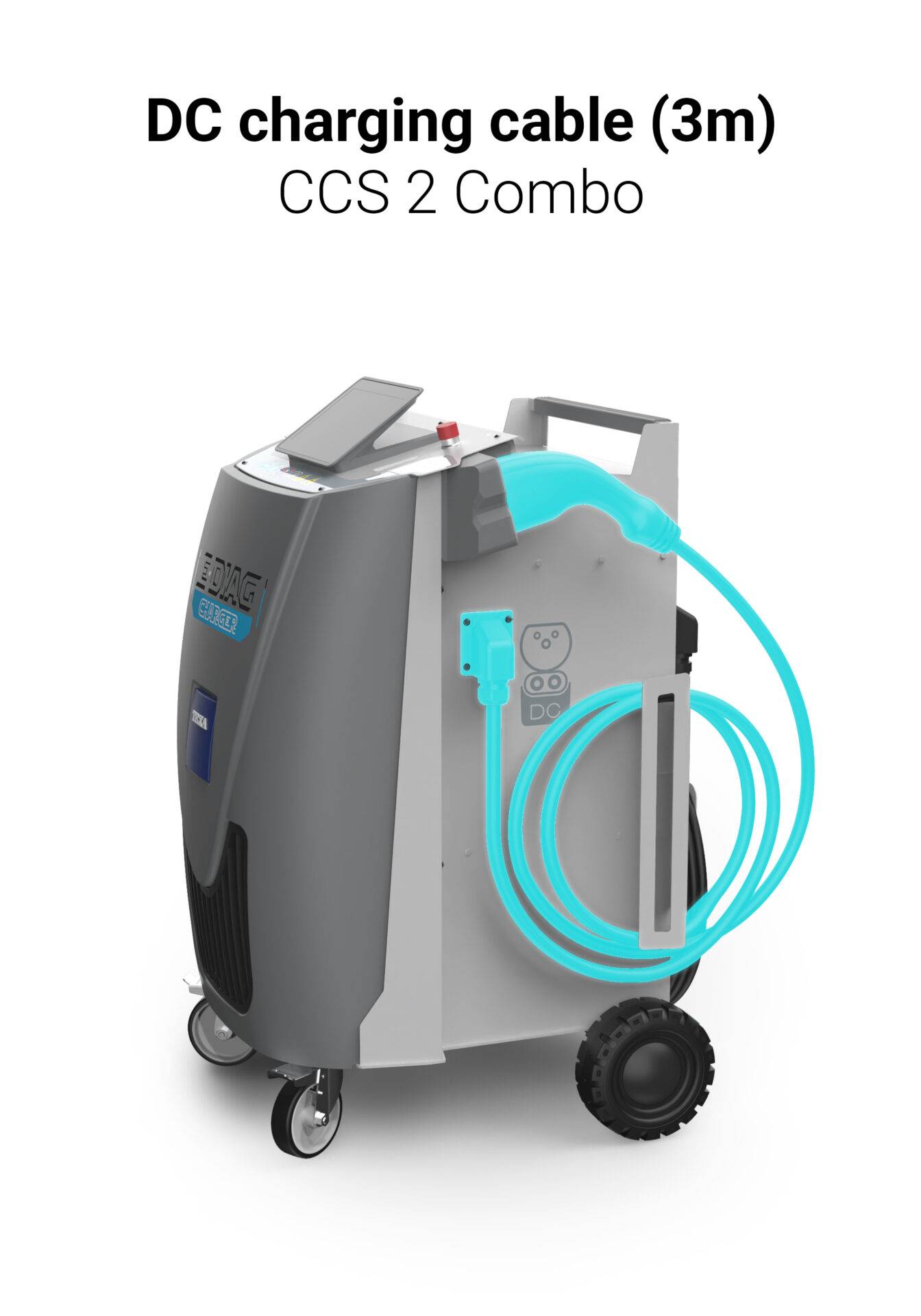

DC CCS2 COMBO
The recharge measure, both in AC and in DC, is MID (Measuring Instruments Directive) certified based on the Directive 2014/32/EU, which certifies the measuring tools and protects vehicle repairers and customers.
Moreover, at the end of the recharge, the customers also receive another certificate* related to the battery state of health.
It is a particularly useful service for car drivers as it returns precise and reliable data on the residual capacity of the vehicle’s battery.
*Certificate generated by an accredited third party.

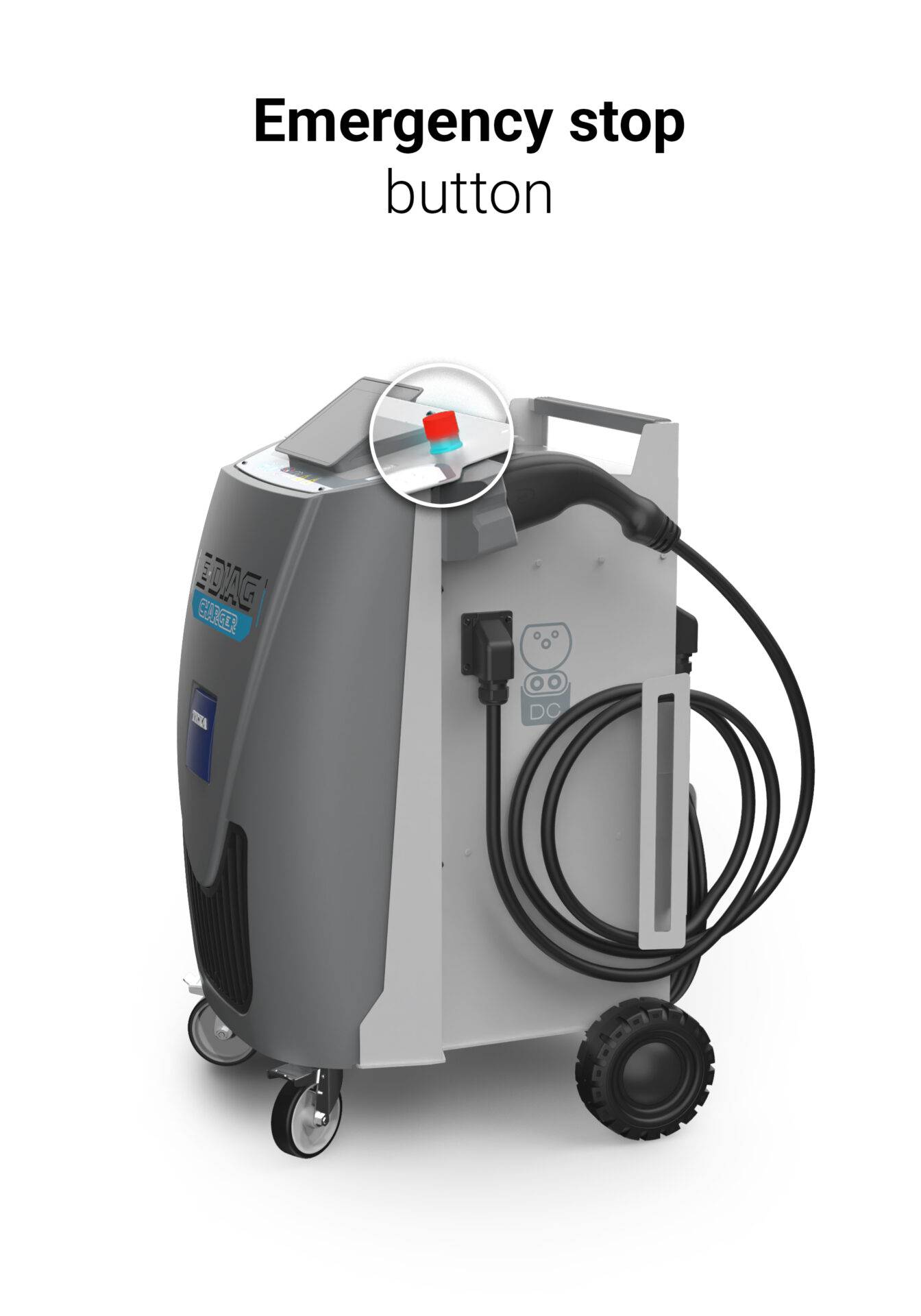

Electrical safety
Each time E-DIAG CHARGER is started, it performs an internal self-diagnosis so to guarantee proper operation from an electrical safety point of view.
Diagnosis
TEXA’s built-in diagnosis makes checking the charging systems’ operation possible, during the recharge itself.

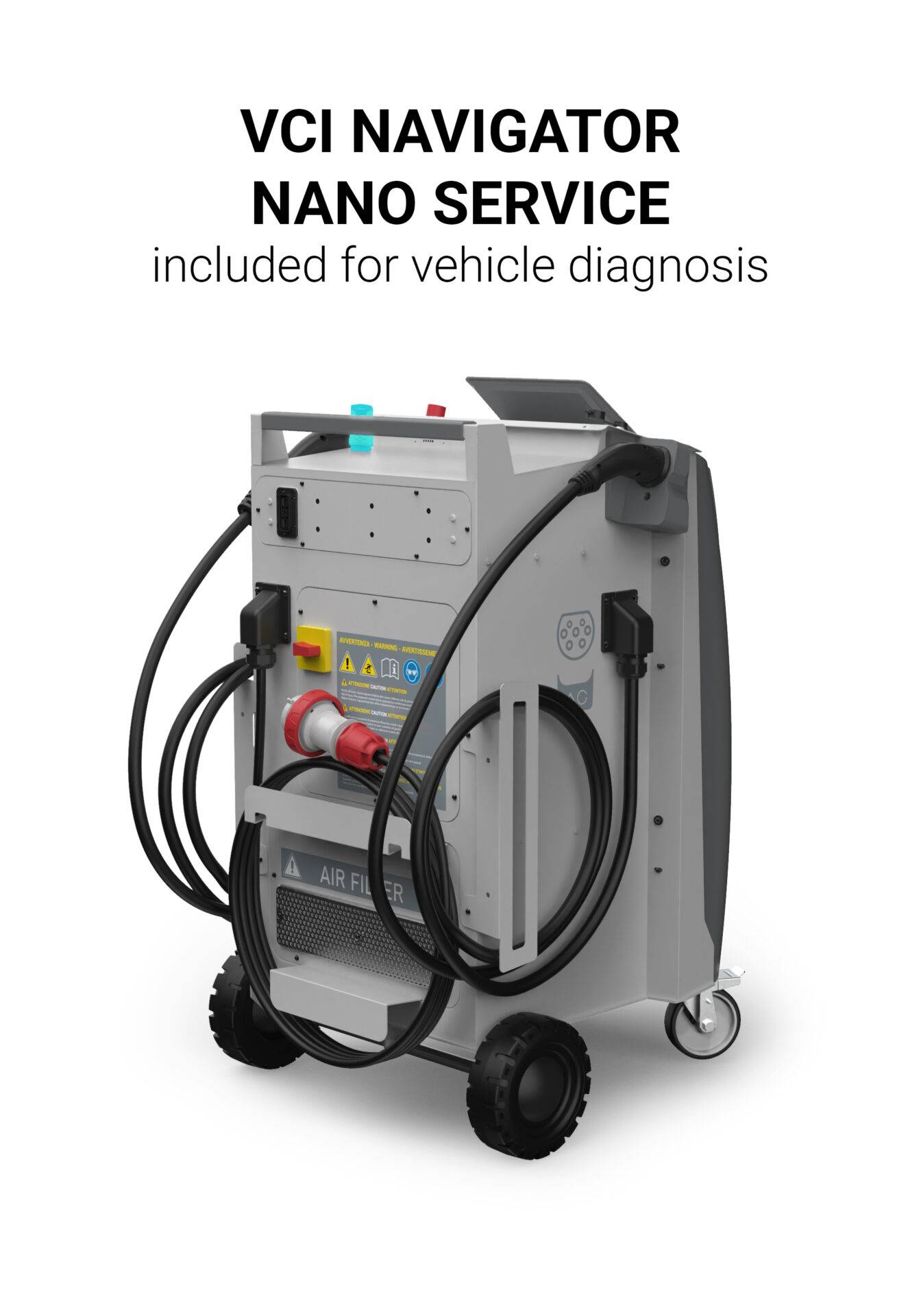

Moreover, using NAVIGATOR NANO SERVICE (through the vehicle’s OBD socket), you can view the diagnostic parameters provided by the control units in the vehicle, connect to the BMS, and even monitor the status of each cell individually, other than fully read the parameters relating to the battery and charging system.
Battery State of Health (SoH)
In the field of electric and hybrid vehicles it is increasingly important, from the point of view of both mechanics and car drivers, to precisely evaluate the state of health of the traction battery and the duration of the main components on board the vehicle.

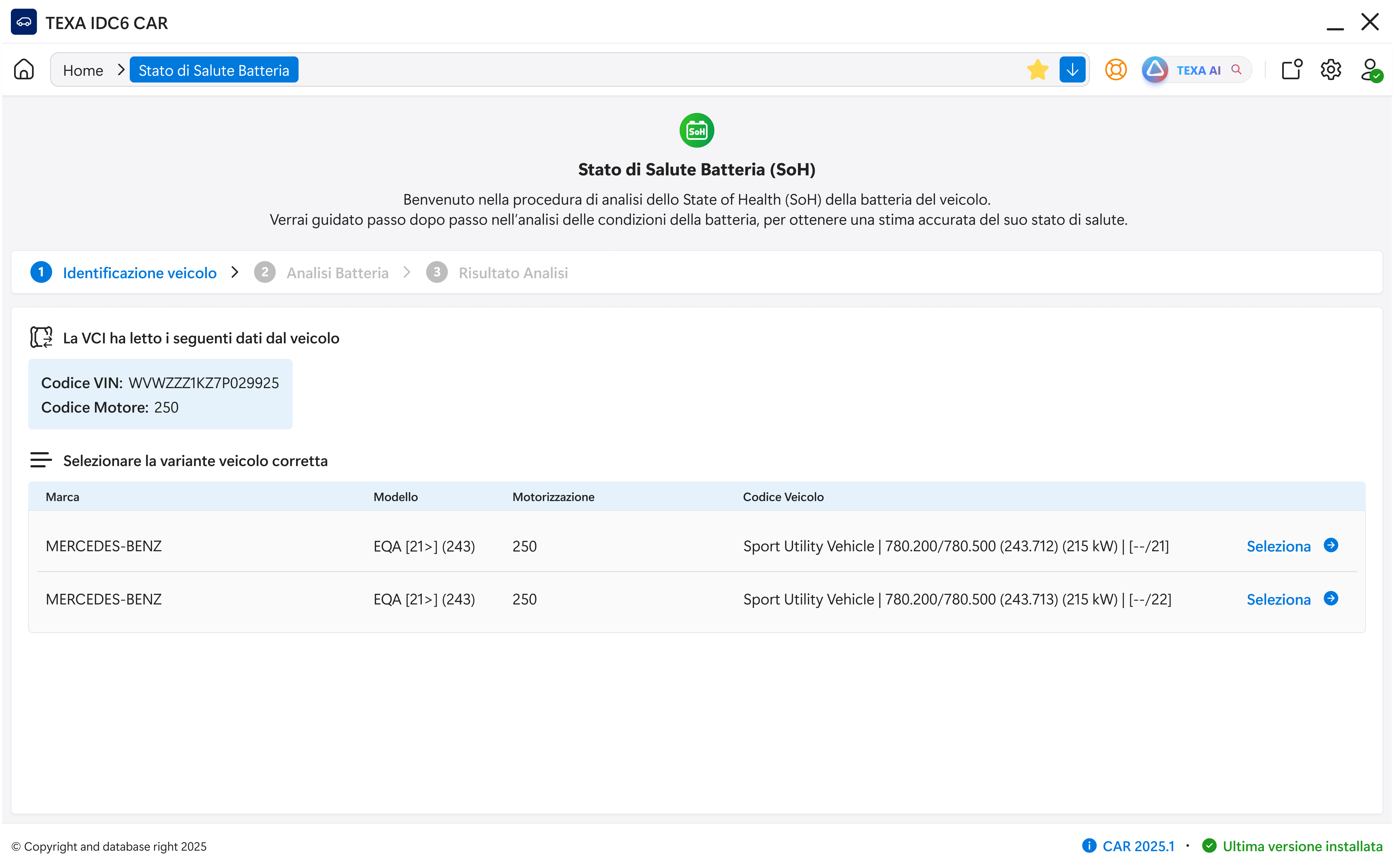

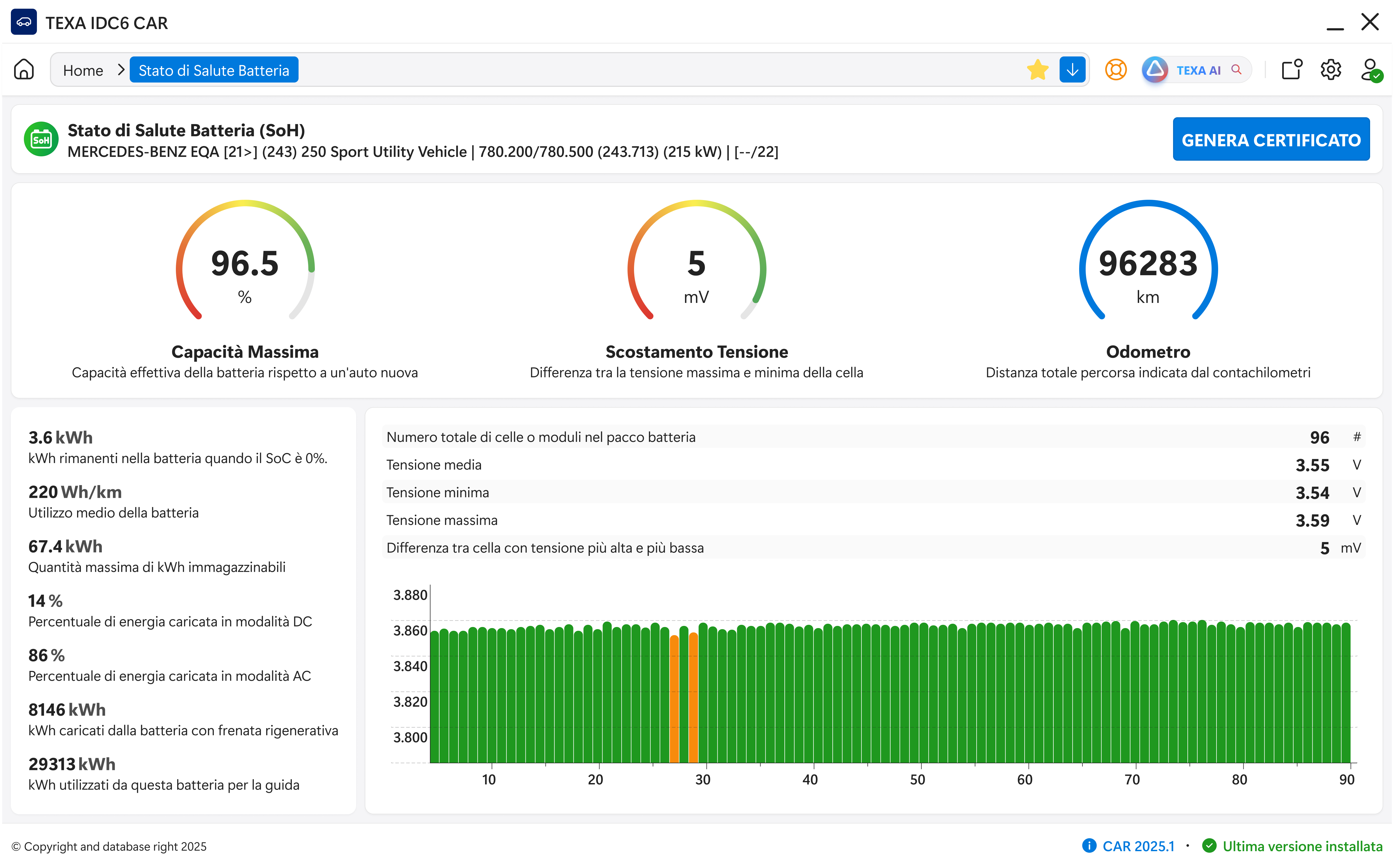

In this sense TEXA developed a process that returns an accurate percentage valuation of the battery ‘s State of Health (SoH), through the parameters obtained directly from the control units and processed in cloud. This procedure is a standard in E-DIAG CHARGER. Furthermore, mechanics who want to offer their customers an accredited certificate relating to the battery state of health can request it directly from the tool. They will receive it within a few minutes at their email address.

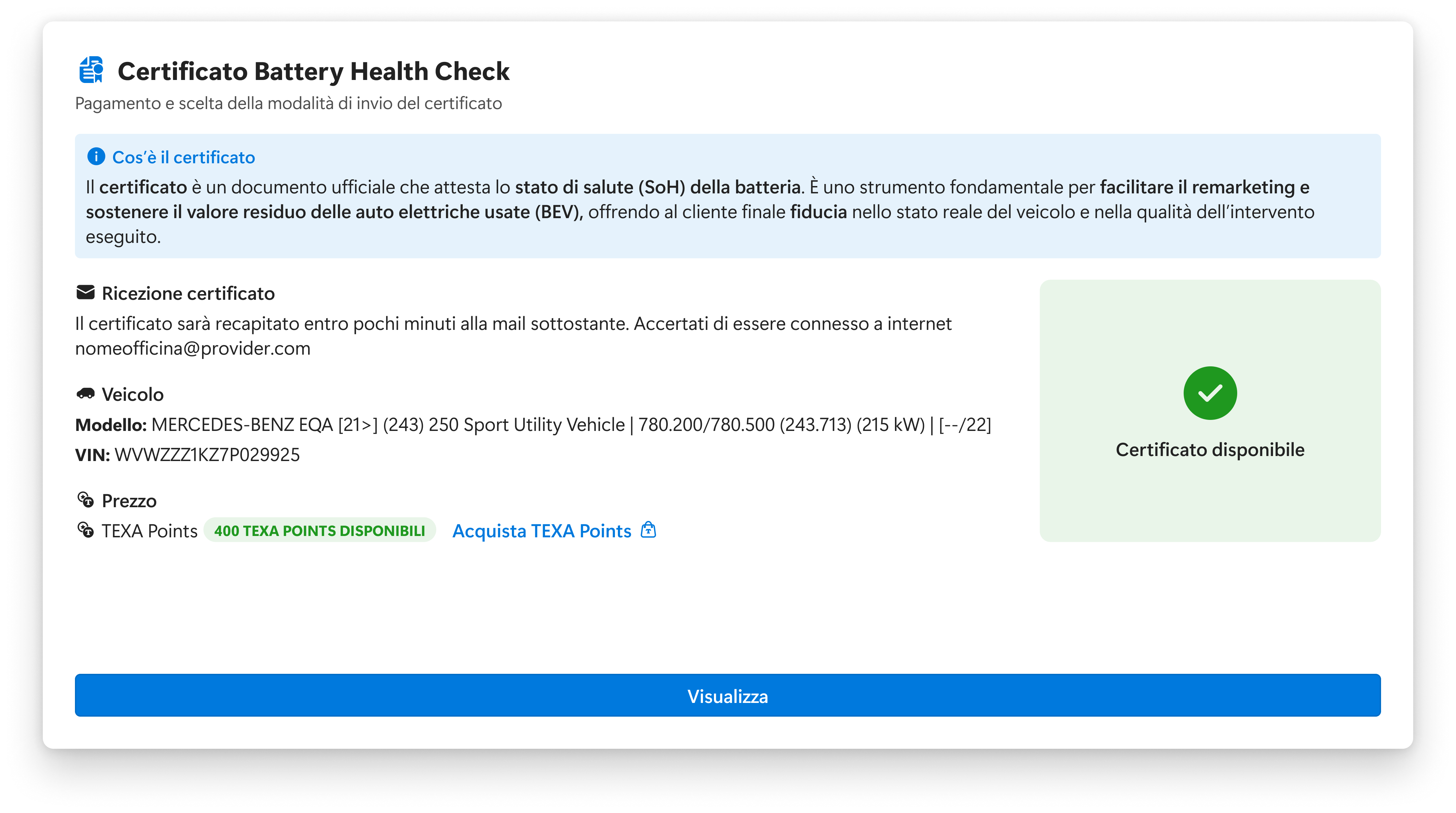

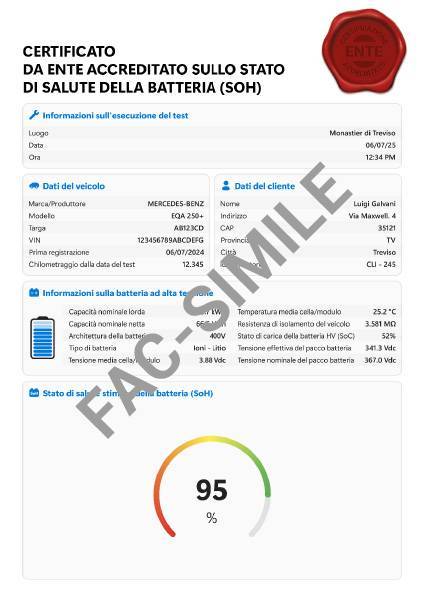

Certification for the battery state of health

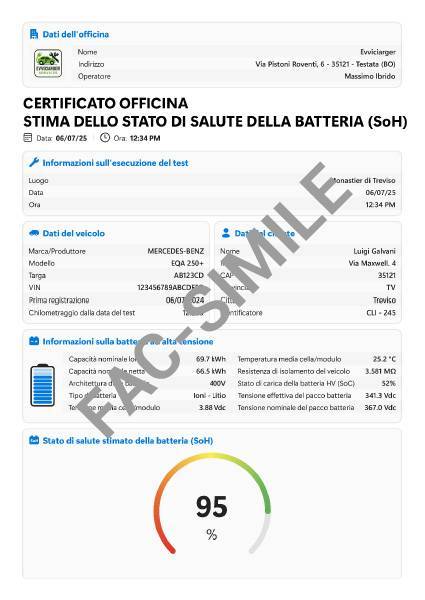

Workshop certificate
Vehicle repairers who own a TEXPACK E-DIAG CHARGER can provide customers with a certificate on the battery state of health with their own header.
Service included in the TEXPACK E-DIAG CHARGER subscription.
Accredited certificate
it is the same certificate as the workshop’s, but it is accredited by a third party. The accredited certificate is a paid service, charged on a pay-as-you-go basis, and reserved to the customers who own a TEXPACK E-DIAG CHARGER.

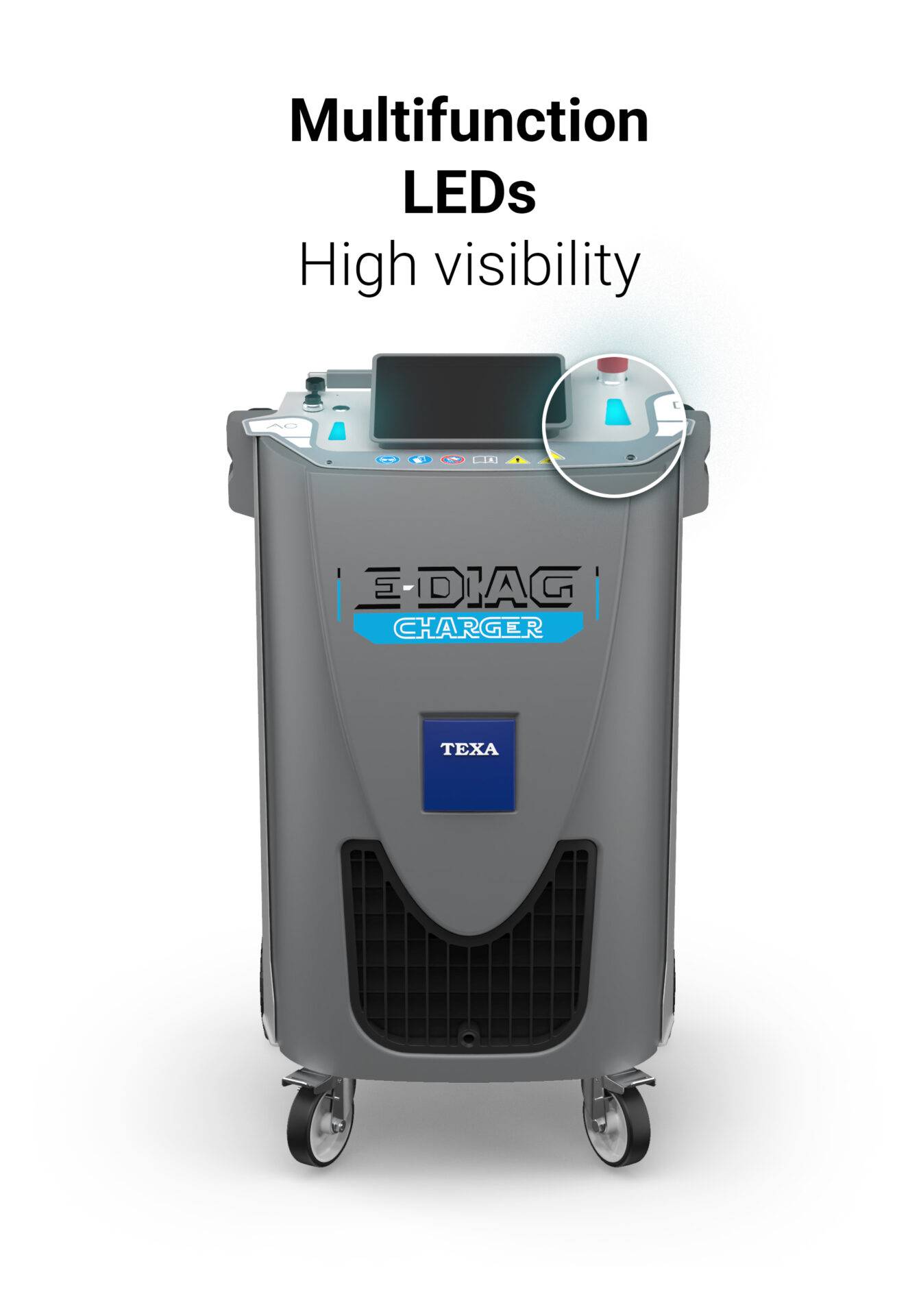

Recharge and diagnosis never seen before

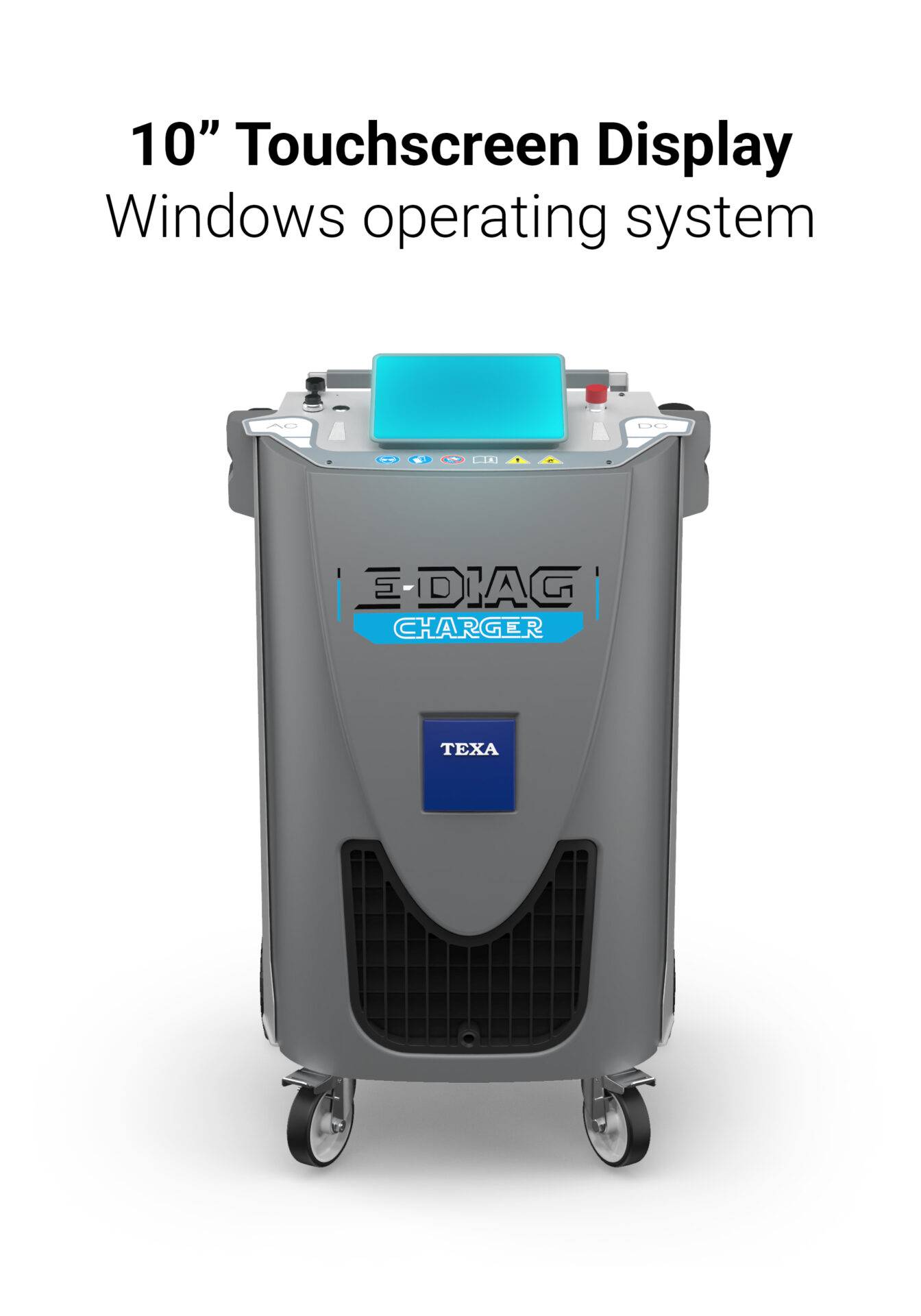

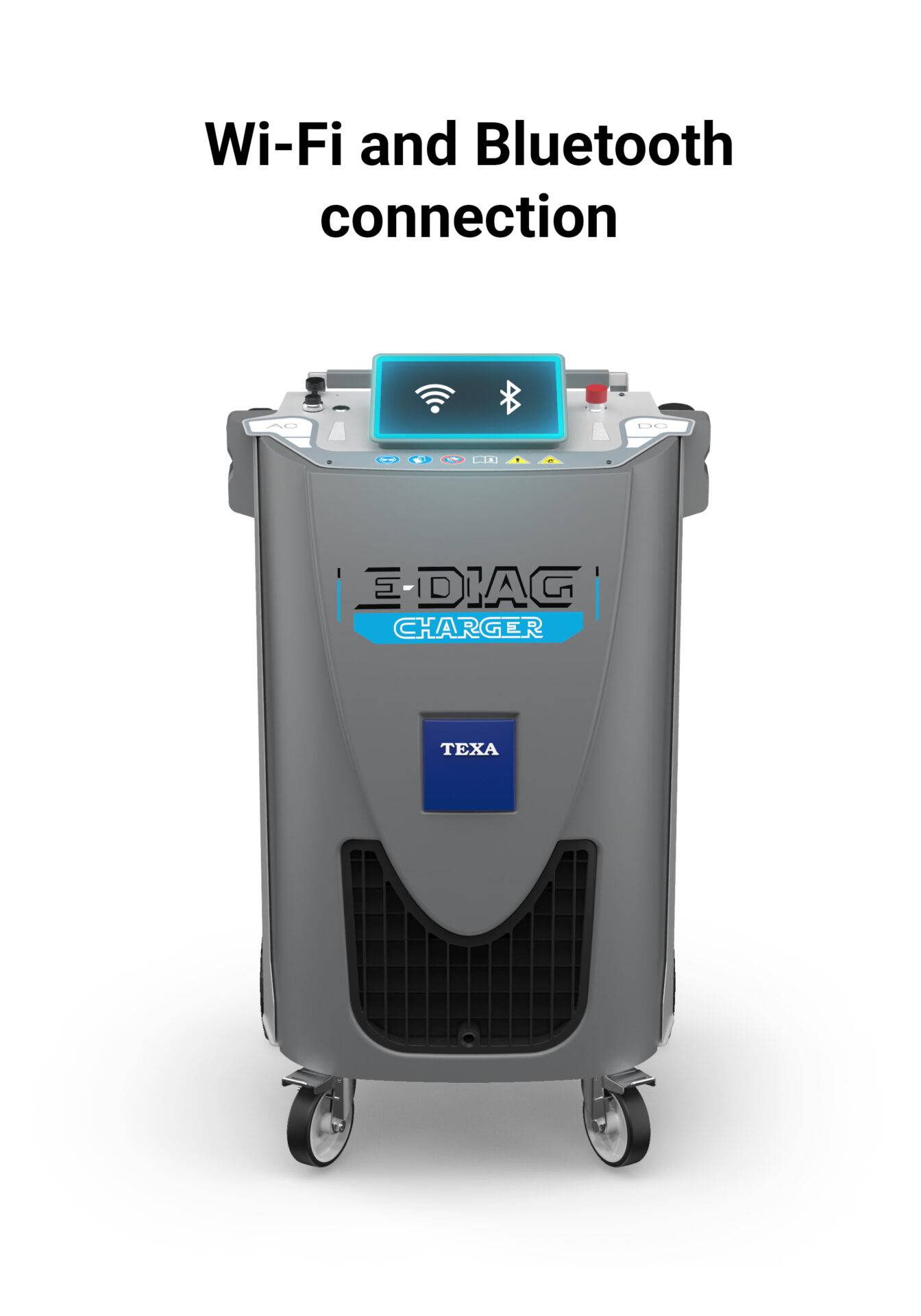

With a 10” multi-touch display

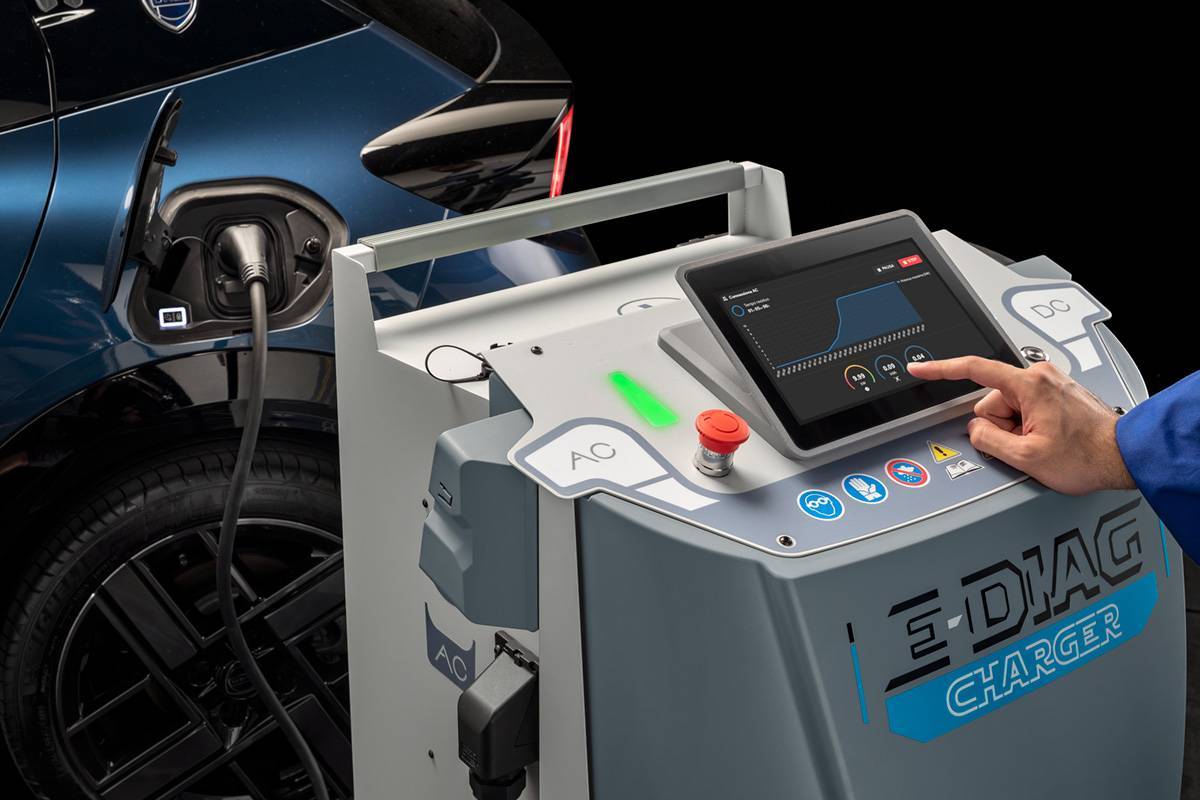

E-DIAG CHARGER is equipped with a 10” multi-touch colour display, which guarantees great useability and a clear view on the operations to complete. Very interesting is its glove-touch technology, which ensures perfect use even if the operator is wearing gloves.
Direct access to the most useful operations
Thanks to a simple and intuitive software
The E-DIAG CHARGER software, developed based on Windows, provides all the information the user needs in a single screen so to have direct access to the most useful information. The easy-to-navigate menu exploits the wide display and reduces to a minimum the various operating steps: in next to no time, you will move from the initial activation phases to carrying out the diagnosis or charging services.

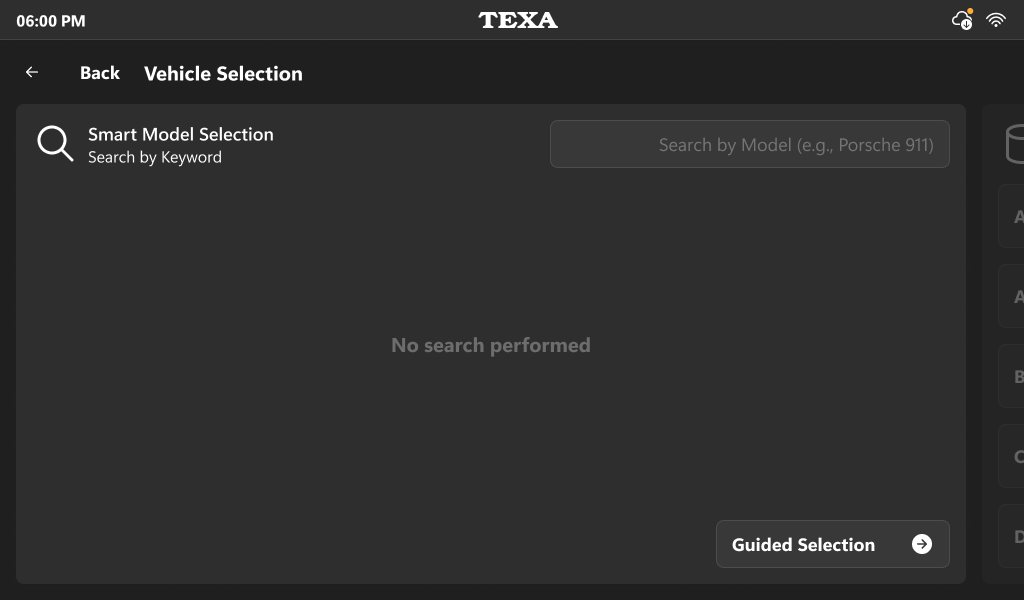

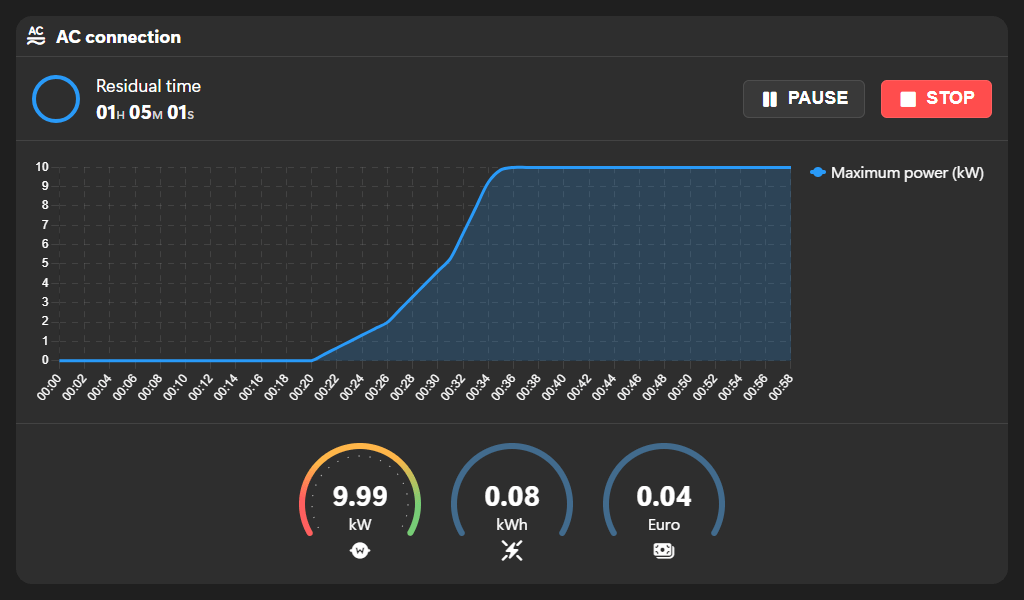

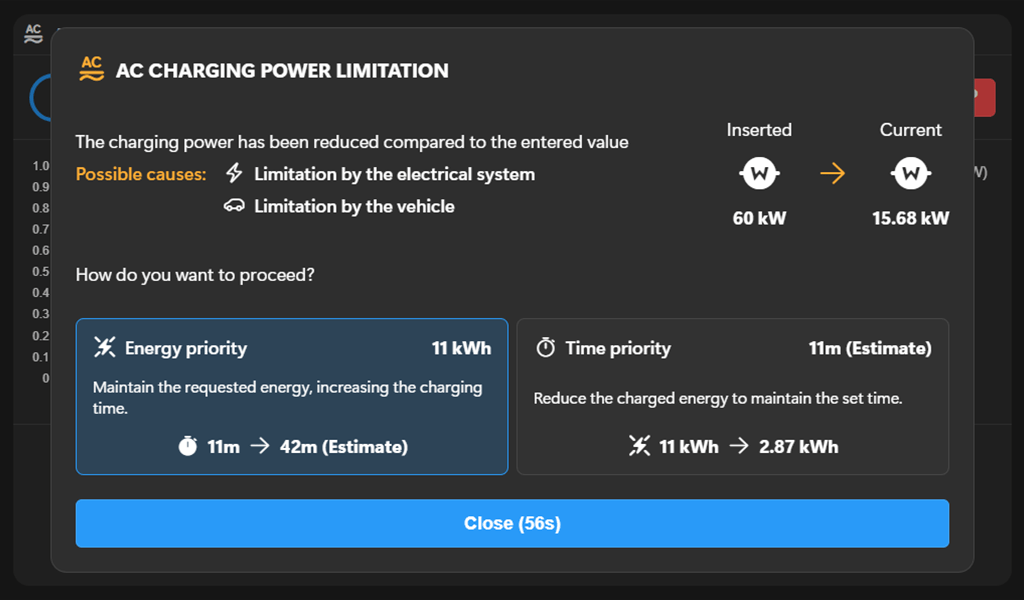

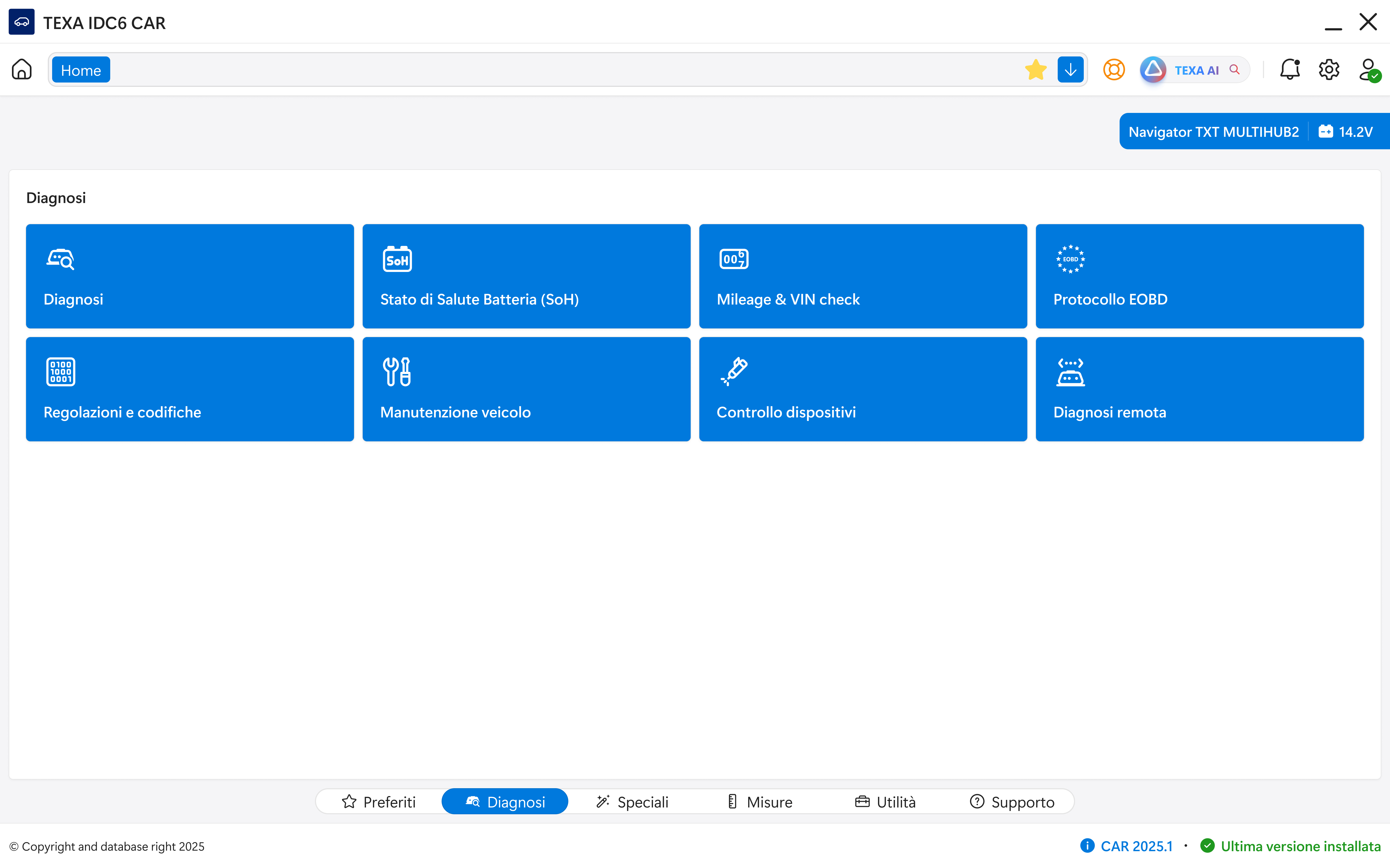

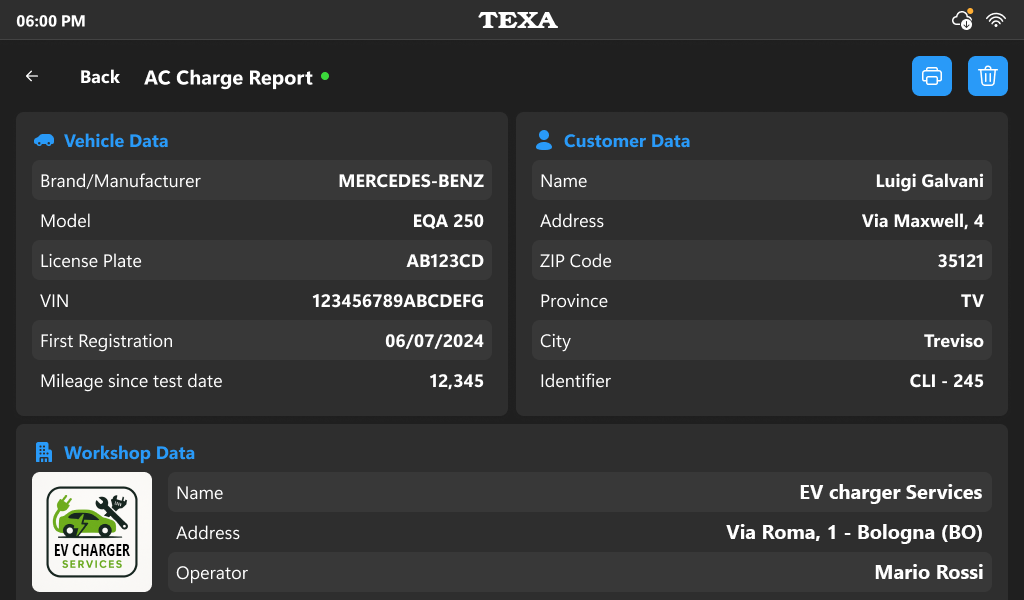

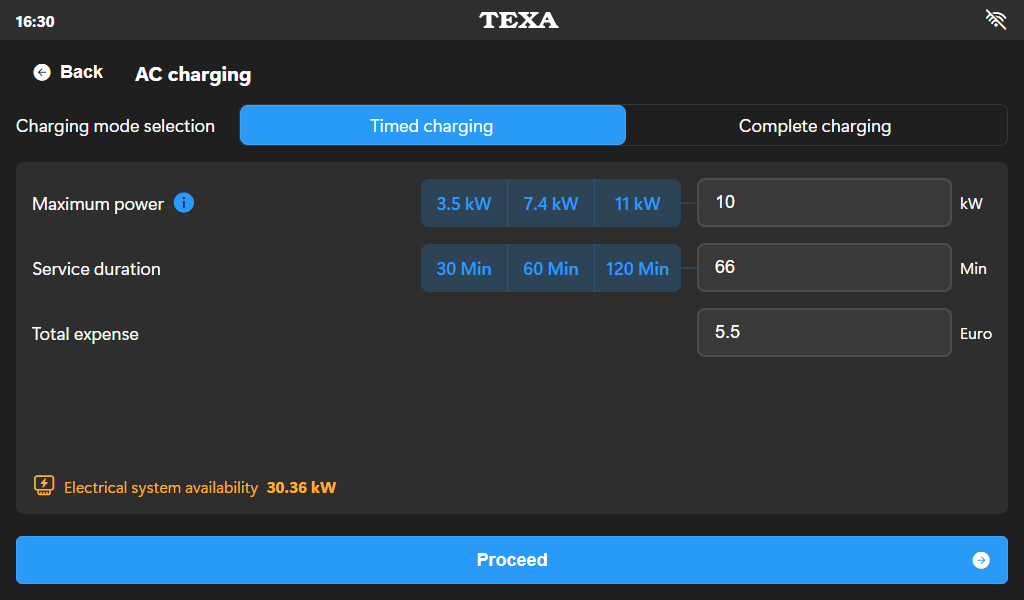

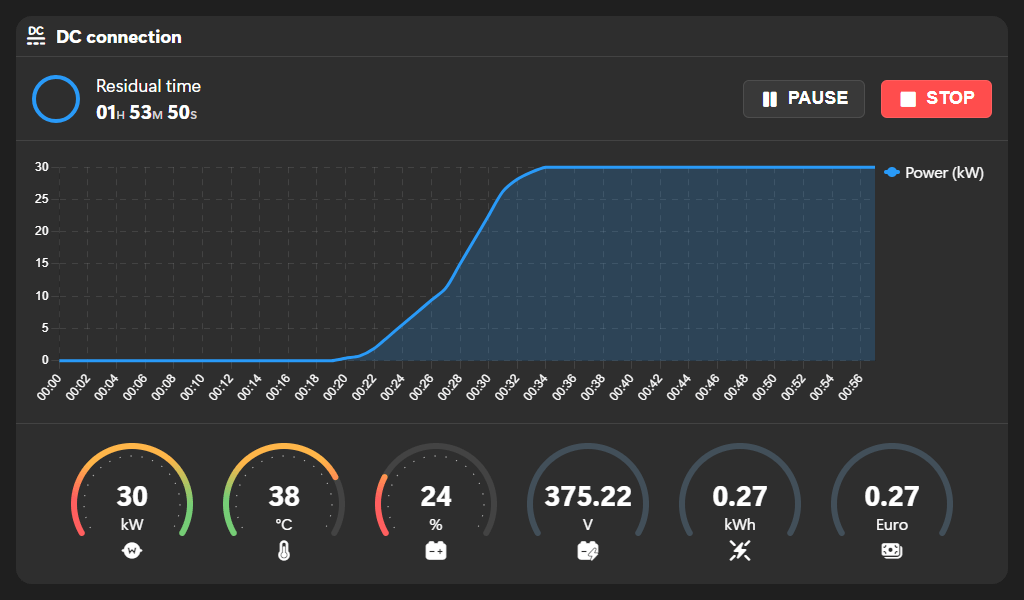

Below there is a summary of the main software screens, from the selection of the service to the diagnosis and charging phases:
Power supply and energy management

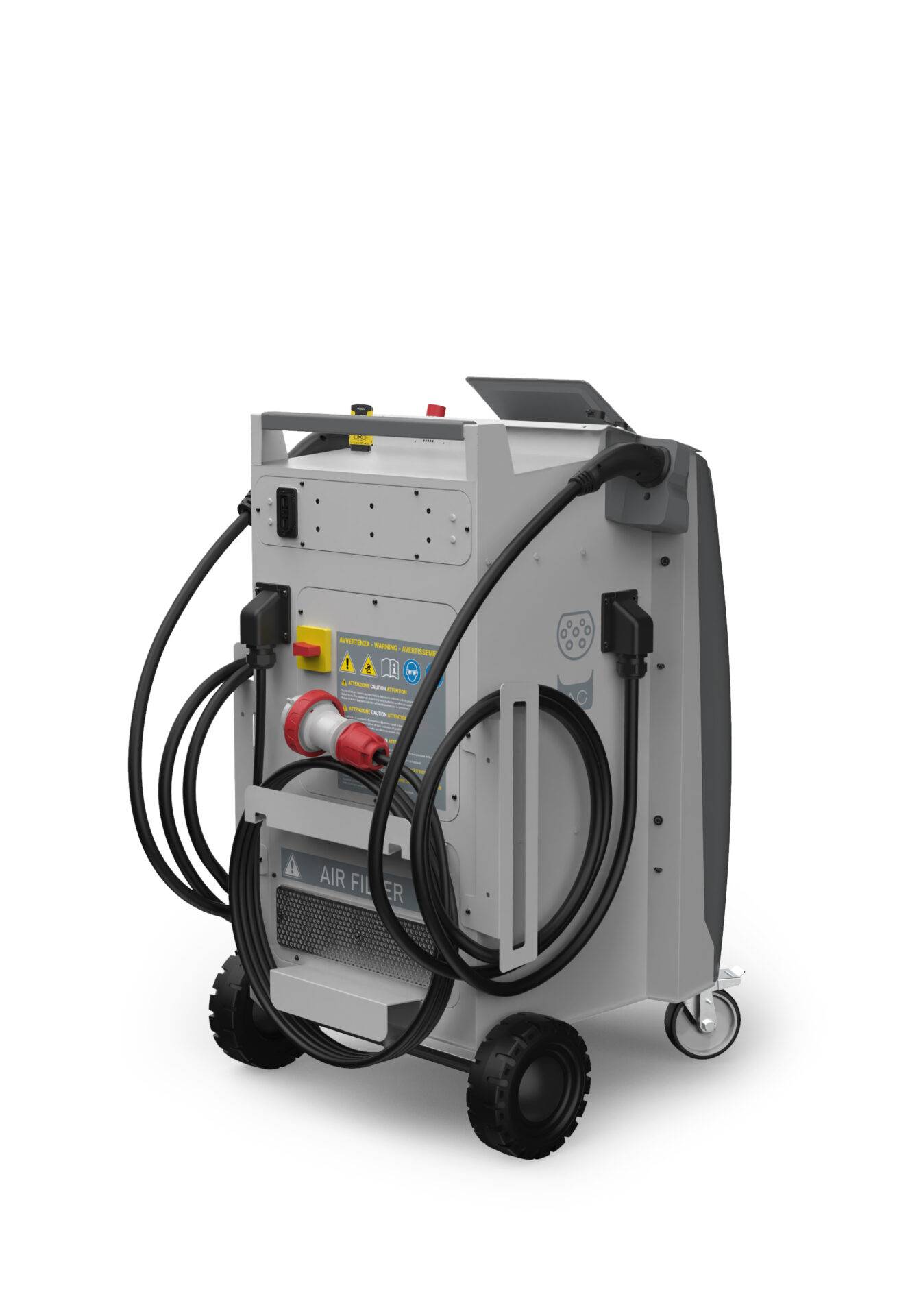

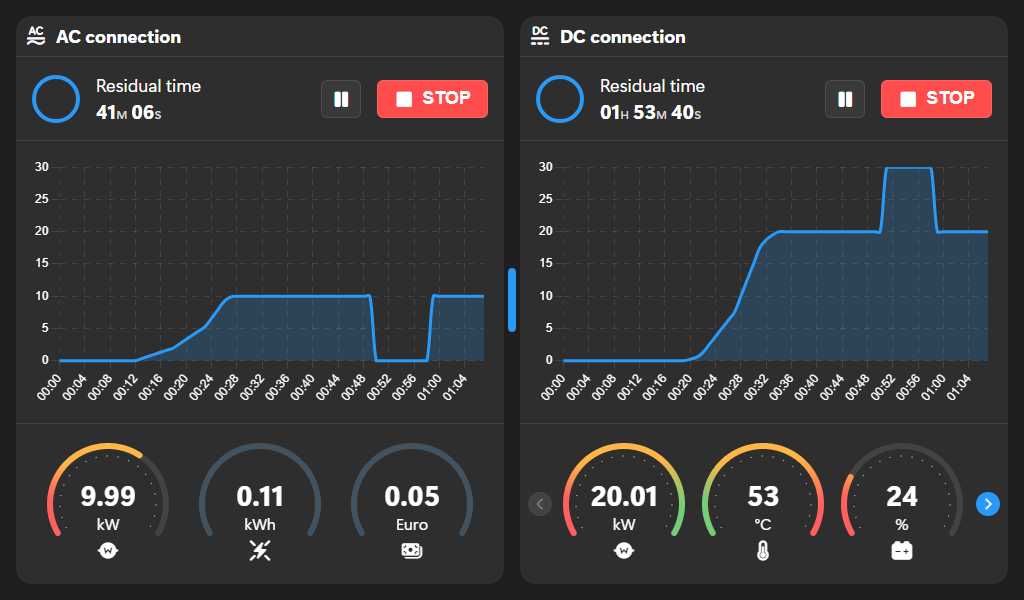

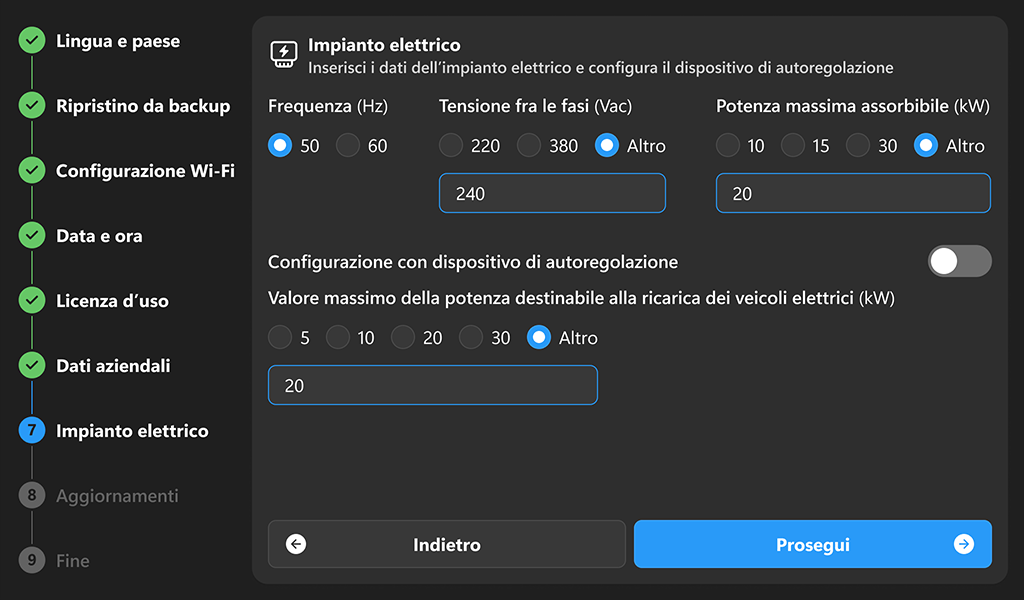

E-DIAG CHARGER is powered by an industrial three-phase power socket in the workshop’s electrical system. It allows charging two vehicles simultaneously, one in AC and the other in DC, with settable power thresholds. Furthermore, it can manage the automatic adjustment via accessory (PLC ENERGY METER) of the maximum charging power on the two branches avoiding untimely disconnections due to overdraw or the interventions of protections in the device’s electrical power system and respecting the maximum power that can be used in the workshop’s system.
Design and mobility

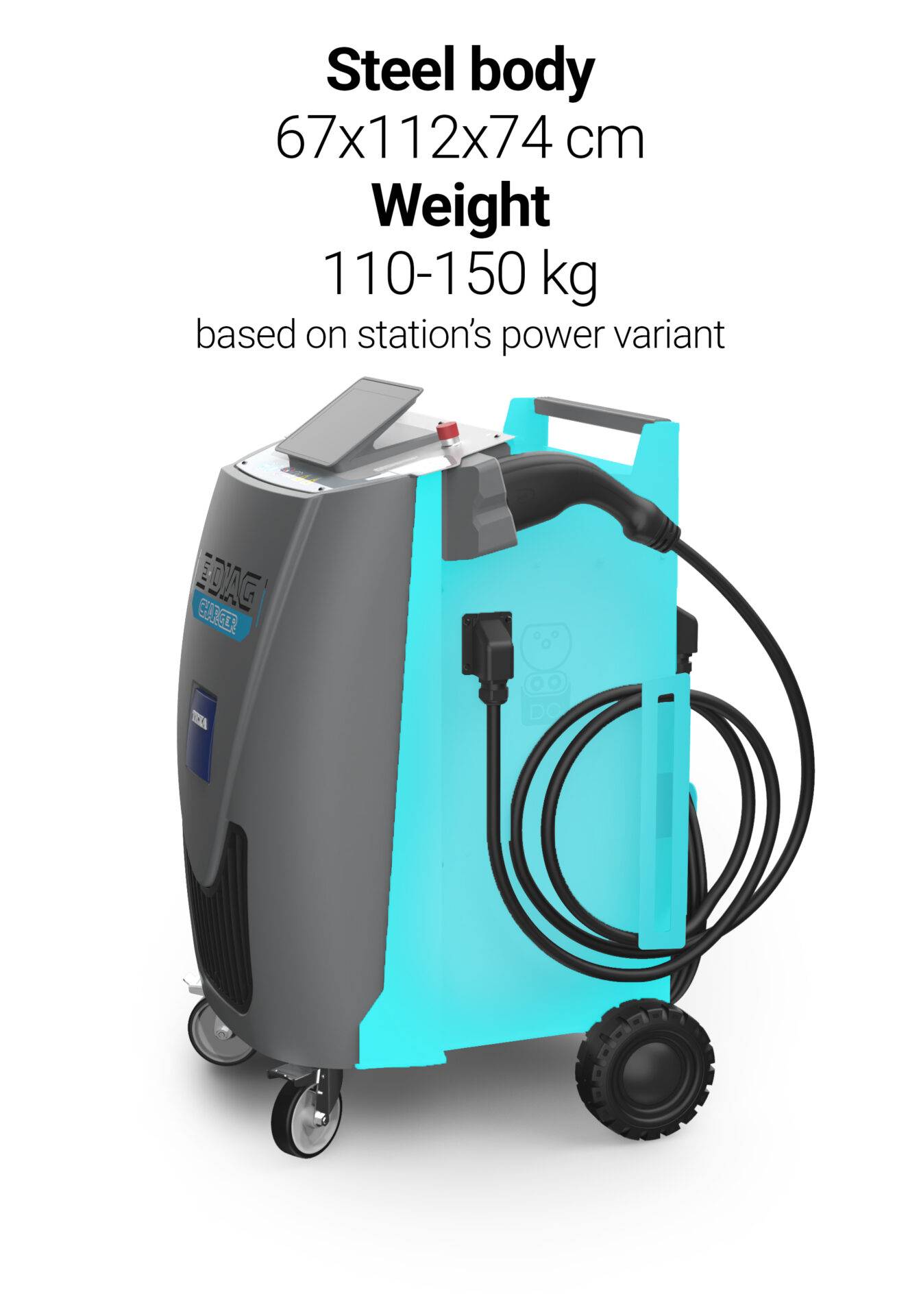

As by TEXA’s tradition, during the project phase, special attention was given to the design and useability of the product, which were made clear through the well-finished and captivating contours, though preserving the practicality and immediateness of use.

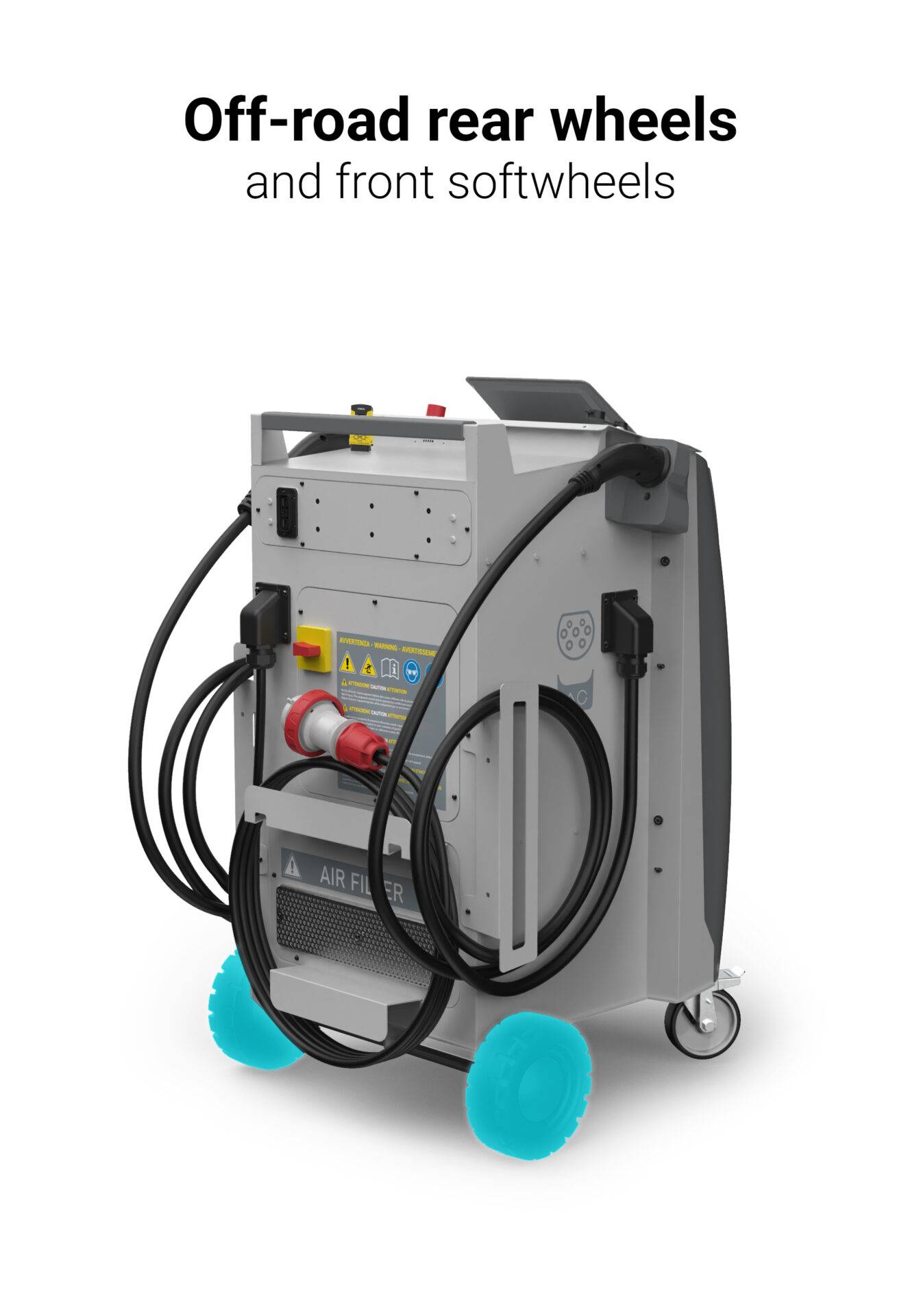

The structure, equipped with two practical castor wheels, can be moved easily and can therefore be used in small-sized workshops also.
Power supply and energy management
E-DIAG CHARGER is powered by an industrial three-phase power socket in the workshop’s electrical system. It allows charging two vehicles simultaneously, one in AC and the other in DC, with settable power thresholds. Furthermore, it can manage the automatic adjustment via accessory (PLC ENERGY METER) of the maximum charging power on the two branches avoiding untimely disconnections due to overdraw or the interventions of protections in the device’s electrical power system and respecting the maximum power that can be used in the workshop’s system.
Design and mobility
As by TEXA’s tradition, during the project phase, special attention was given to the design and useability of the product, which were made clear through the well-finished and captivating contours, though preserving the practicality and immediateness of use. The structure, equipped with two practical castor wheels, can be moved easily and can therefore be used in small-sized workshops also.
Perfect voltage, even during the self-diagnosis phase

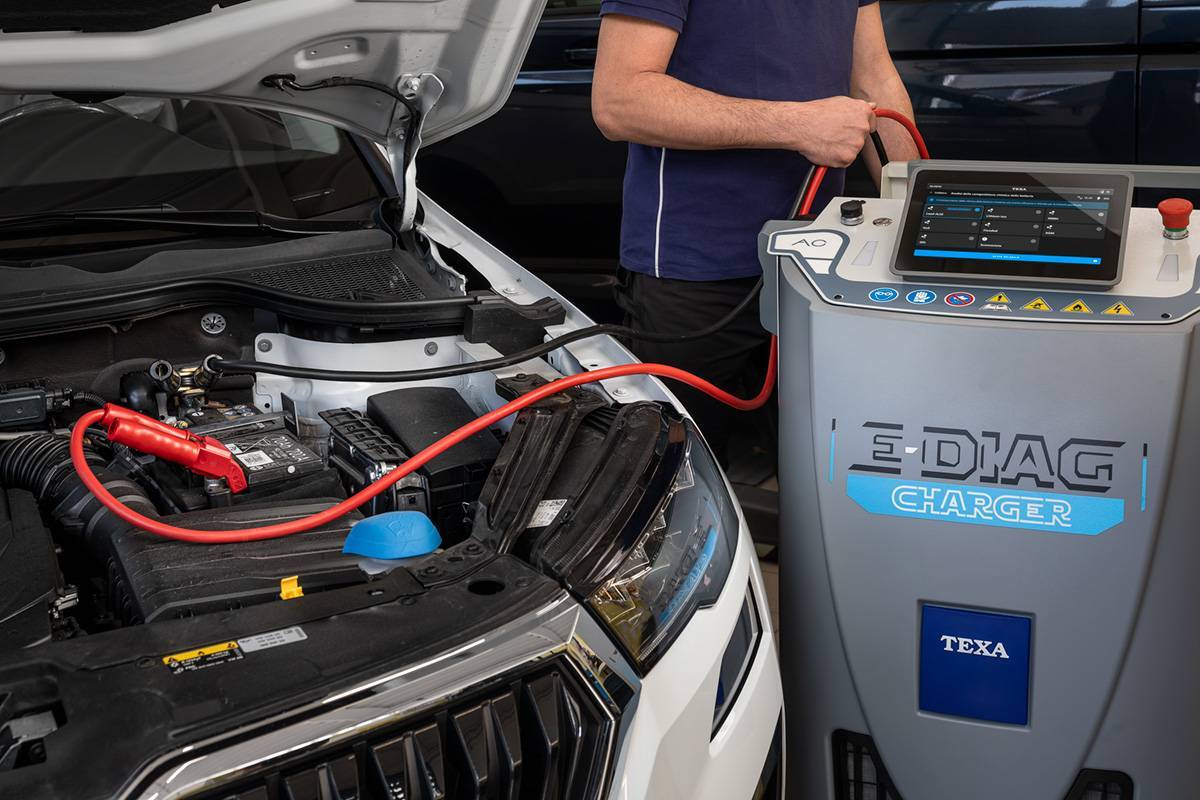

E-Diag Charger is suitable for use in the workshop, also because it maintains the battery at a perfectly stabilised voltage during the crucial phases of the maintenance activities, such as when you need to locate a failure using self-diagnosis, reprogram one or more control units, calibrate the ADAS, etc. The diagnostic work in this mode, called flashing mode, allows meeting the manufacturers’ recommendations.
TEXA always has safety in mind, for this reason it developed special clamps equipped with thermocouples that measure the temperature of the battery terminals. This ensures that the charging phases are carried out in complete safety, thanks to a system that immediately blocks the charge if there are abnormal temperature levels, such as if the clamps are not properly positioned on the terminals.
Technical Specifications
Every TEXA product is supported by comprehensive and constantly updated technical documentation.
