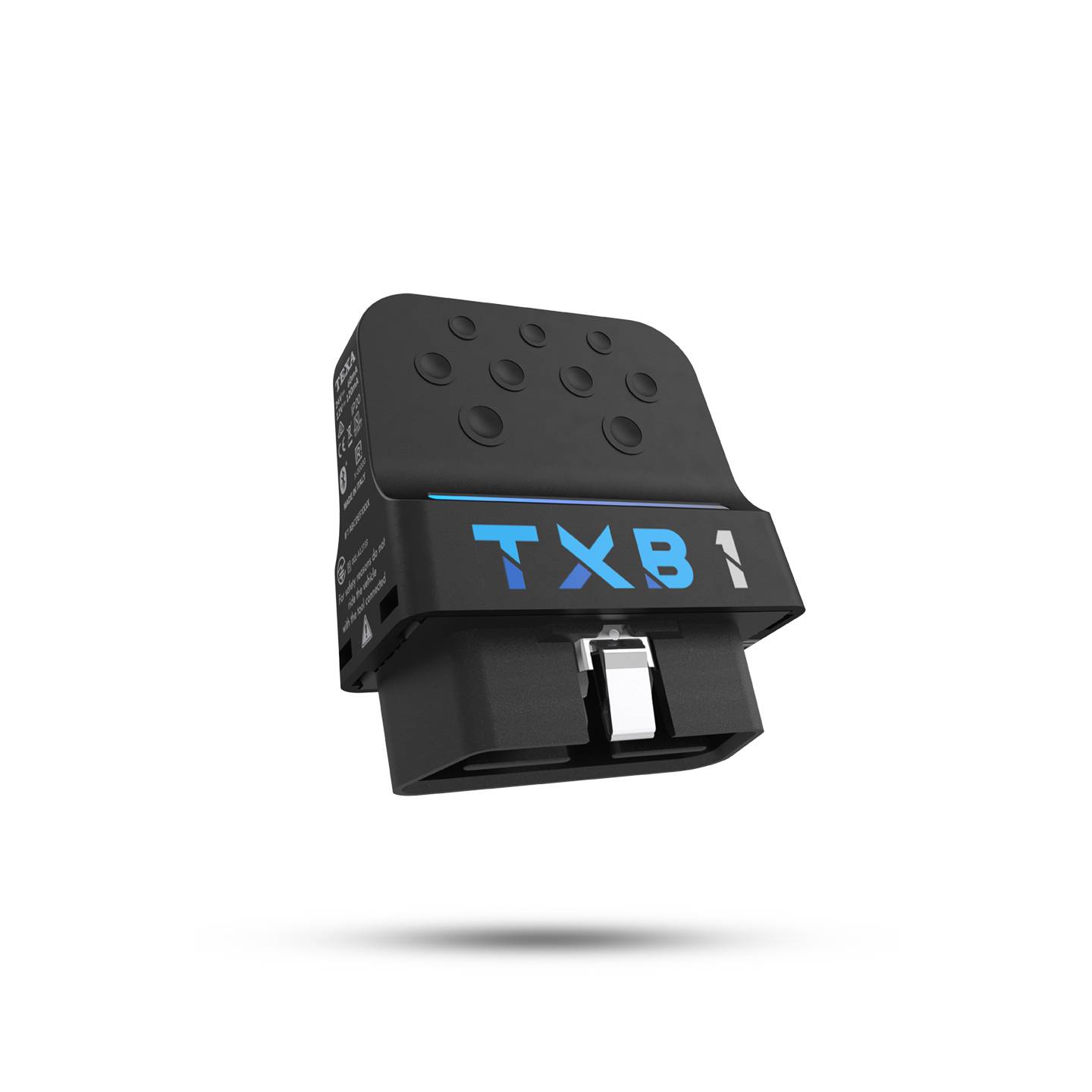

NAVIGATOR TXB 1
NAVIGATOR TXB 1
A diagnostic interface dedicated to the diagnosis on outboard engines and personal watercrafts.
Its design aims at ensuring compatibility with a wide range of engines, offering a versatile and flexible solution for the repair and maintenance needs of specialised technicians. Lastly, it integrates an advanced technology that allows recording the diagnostic tests also while moving*.
* For the diagnostic tests while moving, carefully read and follow the prescriptions you find at: www.texa.com/test-drive.
A custom-developed diagnostic software
TXB ZERO is supplied in a handy case that contains the necessary cables to operate on the many outboard motors and jet skis present in the IDC6 MARINE diagnostic software, specially developed for this tool and rich in technical data, interactive electrical diagrams, technical sheets, nominal values associated with errors, and much more.
Integrate NAVIGATOR TXB 1 with a licence and subscription!
SOFTWARE IDC6
The IDC6 software was created by TEXA to guide technicians throughout the entire diagnostic phase in a simple, quick and intuitive way.
Drawing from over thirty years of know-how IDC6 has proved to be an essential aid for daily challenges, offering everything you may need.
TEXPACK SUBSCRIPTION
The TEXPACK subscription is an annual service that allows using the tool to its full potential always being updated with the latest news on the market and coverages of makes and models.
All the diagnostic solutions subscribed to with TEXPACK have access to the functions with artificial intelligence
TEX@INFO SUBSCRIPTION
With the TEX@INFO services your basic subscription can be integrated with specific functions that can support you even more thoroughly in diagnosis based on your operating needs.
Customer Service
Team and technology at your service
* Verify the availability of SERVICER in your own country.
Technical features
MODEL
NAVIGATOR TXB 1
MANUFACTURER
TEXA S.p.A.
PROCESSOR
ARM Cortex M4 (STM32F439ZIY6)
MEMORY
• SDRAM: 8 MB
• Flash NAND: 4 GB
VEHICLE BATTERY
12Vdc and 24Vdc system management
EXTERNAL POWER SUPPLY
12 / 24 Vdc
WIRELESS CONNECTION
Bluetooth Classic (2.1)
OPERATIONAL BAND
2400 – 2483.5 MHz
MAXIMUM RADIO FREQUENCY POWER TRANSMITTED
4 dBm
DIAGNOSTIC CONNECTOR
OBD ISO15031-03 for 24 V systems
SUPPORTED AUTOMOTIVE BUS TYPES
• 2 HS CAN channels connected to OBD pins 3-11, 6-14 that can be enabled individually
• 1 ISO9141-2, ISO14230 K-Line transceiver with 60 mA current protection connected to pins 2, 7, 8, 9
• 1 ISO9141-2, ISO14230 L-Line transceiver with 60 mA current protection connected to pin 15
VISIBLE WARNINGS
• Green/red bi-colour LED x1
• Blue LED x1
12 V CONSUMPTION
< 120 mA
24 V CONSUMPTION
< 60 mA
OPERATING TEMPERATURE
0 ÷ 50 °C
STORAGE TEMPERATURE
– 20 ÷ 60 °C
OPERATING MOISTUREESERCIZIO
10% ÷ 80% without condensation
WEIGHT
15 g
