WHAT IS TPMS?

European legislation requires that from 1st November 2014, all vehicles destined for the transport of passengers must be equipped as standard with TPMS (Tyre Pressure Monitoring System).

With a few rare exceptions, tyre pressure is monitored by sensors fitted to the tyre inflation valves. Each sensor can measure tyre pressure, temperature and movement. The sensors are powered by a small lithium battery and dialogue with the control unit over a radio link.

Working with TPMS systems can be particularly challenging because there is not yet any standard governing their form, positioning and radio frequency. A technically evolved tool is therefore essential to tackle TPMS maintenance work effectively.











I AM INTERESTED
PLEASE CONTACT ME FOR A DEMONSTRATION!

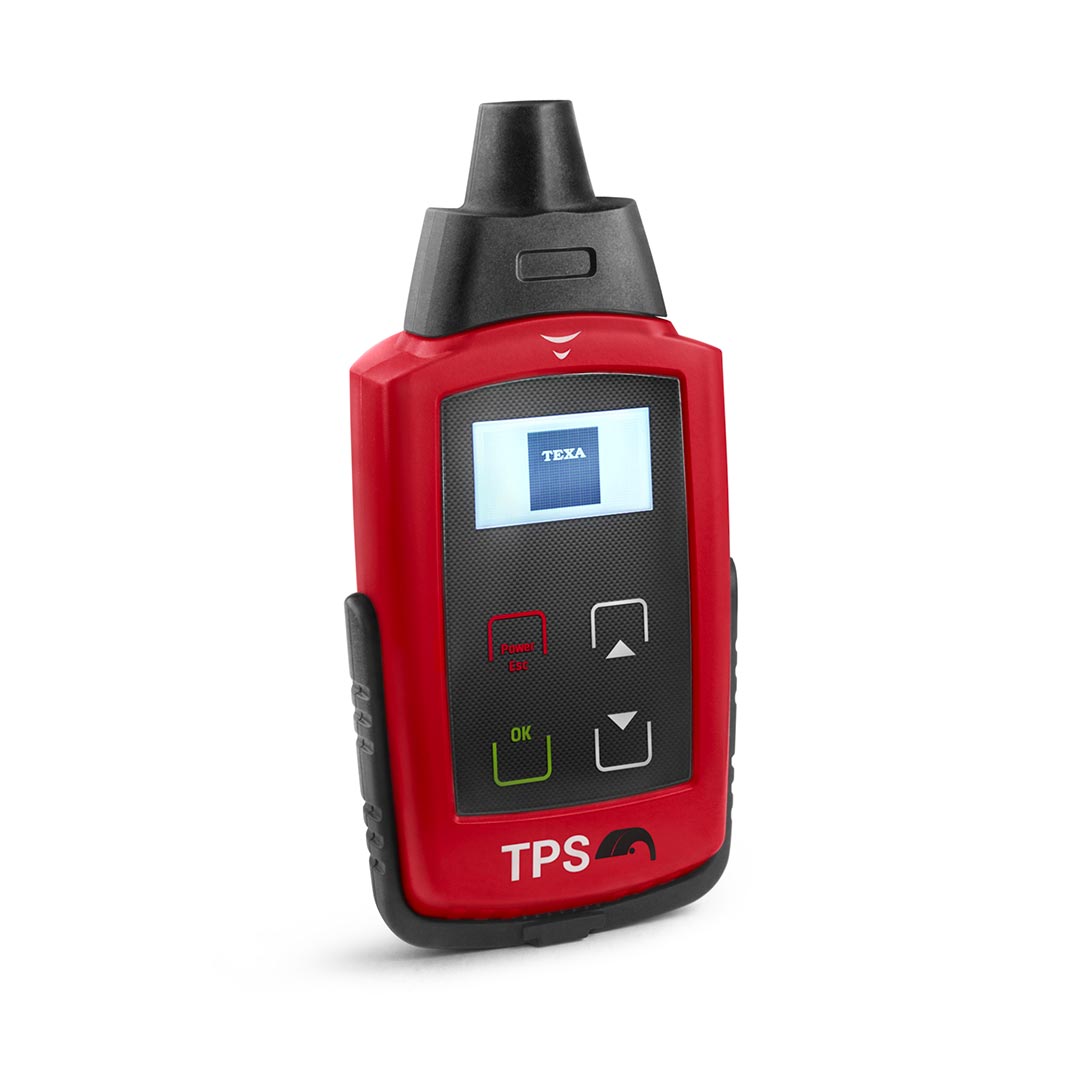

TPS THE STANDARD SOLUTION FOR THE TPMS

TPS (Tyre Pressure Service) is TEXA’s solution for tyre-related service operations. TPS boasts an exceptional coverage of makes and models as well as TEXA’s traditionally robust design and build quality.

Once you have selected the make and model of vehicle, TPS can dialogue with the valve sensors on each wheel. Placing the tool near the sensors allows you to activate them and check their efficiency even if they are in stand-by mode at the time. The tool’s own display reads out pressure, temperature and battery charge level (where available), as well as the relevant identification codes and all other diagnostic information provided by the vehicle manufacturer.

EXTRAORDINARY SKILLS
WITHIN REACH

TPS lets you check the condition of sensors and replace them if necessary. The tool’s own built-in database provides a list of compatible spare parts for each selected vehicle. TEXA’s vast database also provides other items of valuable information, including correct procedures for rotating tyres.

If a sensor is replaced by a universal spare part, the TPS tool can even program the new sensor to assign it the same identification code as the old one and link it to the receiver or vehicle control unit.

The procedures are made simple by a highly intuitive menu that guides you through all options step by step.




TUTORIAL VIDEO TPS


Replacement of the TPMS sensor writing the ID code manually



Replacement of the TPMS sensor with automatic programming code ID








TEXA INTEGRATES TPS WITH THE WORKSHOP

In addition to serving as a stand-alone tool, the TPS can also be fully integrated with the equipment of existing TEXA customers.

Thanks to the free "TPMS Repair" app, which guides users step by step through every operation, and via the integrated Bluetooth module, TPS can communicate with any Windows PC running TEXA IDC5 software, the AXONE 4 and the AXONE 4 Mini.

Thanks to the versatility of TPS, a PC, AXONE 4 or AXONE 4 Mini interface can serve as a display unit to provide greater monitor resolution. And more importantly, with a VCI, the technician is even able to communicate with the vehicle’s control units, specifically those involved in the tyre pressure monitoring system.

TEXA customer services

TEXA has always supported its tools with a wide range of services. These services keep TEXA tools up to date with the latest innovations in automotive technology, provide practical troubleshooting assistance and guarantee mechanics all-round competence in their field.

The TEXPACK annual contract provides updates for all environments, while TEX@info provides access to the latest technical bulletins, the “SOLVED PROBLEMS” database powered by Google, the Call Centre and iSupport.

TEXA also runs a virtual store that can be accessed directly from TEXA software, in which users can request the activation of a large number of apps for the world of vehicle diagnostics and repair.

Click the link below to find out more about TEXA’s services.

ENTER THE WORLD OF TEXA



TECHNICAL SPECIFICATIONS

PROCESSOR
Cortex M0+ , 48 MHz

COPROCESSOR
Custom on FPGA (sensor communications)

RAM
16 MB

DISPLAY
Dimensions: 1.5”, Type: backlit monochrome LCD, Resolution: 64x128

TRANSMISSION FREQUENCY
125 kHz

RECEPTION FREQUENCY
433 MHz - 434 MHz

CABLE COMMUNICATIONS
USB

WIRELESS COMMUNICATIONS
Bluetooth class 2 with integrated antenna

BATTERY
Type: Li-ion, Capacity: 1100 mAh, Voltage: 3.7 V
AUTONOMY
approx. 8 hours

CONSUMPTION
500 mA from USB port

RECHARGE
via USB, approx. 3 hours

ENVIRONMENTAL
Operating temperature: - 10 °C to 40 °C
Storage temperature: - 20 °C to 60 °C
Battery charging temperature: 0 °C to 45 °C
Relative humidity, storage and functioning: 10% to 80%, non-condensing

DIMENSIONS
63x142x30 mm

WEIGHT
136 g

DIRECTIVES
Directives: 1999/5/EC R&TTE, 2011/65/EU ROHS
Electromagnetic Compatibility:ETSI EN 301-489-1:2011, ETSI EN 301-489-17:2012
Radio systems: ETSI EN 300 328:2012-06
Safety:EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2001 + AC:2011
